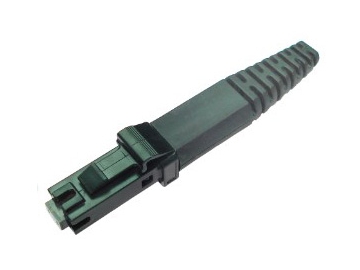

MTRJ Connector
Request a Quote
Features
Specification- TIA/EIA 568-A compliant
- Precision molded MT ferrule
- Duplex ferrule -Plug-jack (RJ-45) design
- Polishing does not require diamond film
- High precision guide pins for exact alignment
- CATV, and Multimedia
- Gigabit Ethernet
- Industrial and medical
- Active device interface
- Premise installations
- Interconnection for O/E modules
- Data processing networks
- Telecommunication networks
- Optical switch interframe connection
- Asynchronous Transmission Mode (ATM)
| Item | Single mode | Multimode |
| Insertion Loss | <0.5dB | <0.3dB |
| Ret urn Loss | ≥45 dB (PC) | |
| Durability | <0.1dB typical change, 200 matings | |
| Operating Temperature | -40 to 85°C | -40 to 85°C |
| Ferrule Hole Sizes | 126.0 1/-0μm | 127 1/-1 -0μm |
