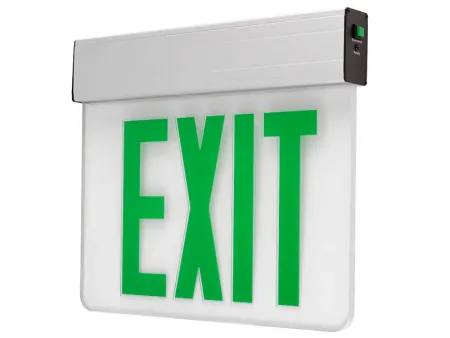

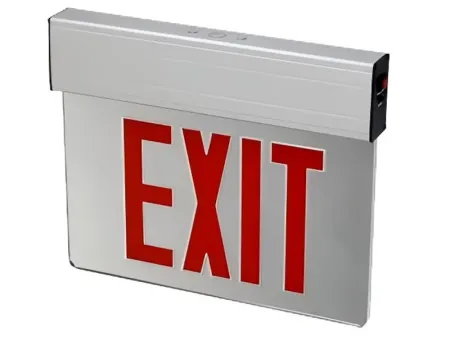

JELEX LED Emergency Exit Sign (12 Red/Green LEDs)

Request a Quote

Website: http://ft-emergencylight.com/2-1-7-led-emergency-exit-sign.html

Features a 6-inch high-visibility EXIT display illuminated by 12 high-intensity red or green LEDs.
Aluminum housing with hight grade acrylic panel designed for top, wall, or side mounting.
Equipped with removable directional arrows to accommodate various installation needs.
120V/277VAC Dual voltage operation.
Includes a built-in 3.6V 600mAh Ni-Cd rechargeable battery, offering a minimum of 90 minutes of emergency runtime.
Requires up to 24 hours for a full recharge cycle.
Designed with a removable front cover for easier installation and battery maintenance.
Optional configurations include single-sided or double-sided display, white or silver panel frames, and red or green LEDs.
Certified by UL and cULus, suitable for damp indoor environments with an operating temperature range of 0-40°C.
Features a test switch and charging indicator for performance verification and maintenance checks.

Specifications

Model	JELEX
Color	Green/Red EXIT Letter
Material	Aluminum housing with acrylic face
Voltage	120 or 277 Volts
Battery	3.6V 600mAh Ni-Cad
Wattage	3.5 W
Type of Bulb	LED
Mounting	Wall, sloped, high, or standard ceiling mounting
Certifications	UL&cUL, CEC, DOE, FCC, ROHS
Weather Rating	Listed for damp location
Product Weight	3.3lbs/1.5kgs
Product Size	377×273×42mm
Remarks	Without recessed mounting (for recessed installation, please select JELEX-6R)
Ordering and Packing Information
MOQ	1000pcs
Lead Time	35 days
Sample Delivery Time	3~10 days
Packing	White box
Carton Size (L×W×H)	38×37×30.5cm/6pcs
Carton CBM	0.043m³
Quantity per Carton	6pcs
Gross Weight	9.8kgs/ctn
Net Weight	9kgs/ctn
Container Loading Quantity	1×20'	1×40'	1×40' HQ
	3837pcs	8023pcs	9349pcs
