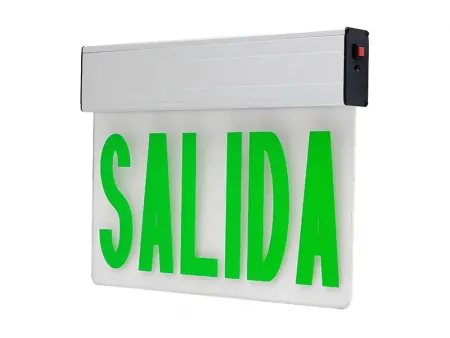

JEL1GW/JEL1RW Single Face SALIDA Emergency Exit Sign (12 LEDs)

Request a Quote

Website: http://ft-emergencylight.com/2-3-2-single-face-salida-emergency-exit-sign.html

Features a single-sided 6-inch exit sign panel with 12 bright red or green LEDs.

Constructed with a durable aluminum housing and plastic face panel.

Offers flexible installation options: ceiling, wall, or side mount.

Includes removable directional arrow plates for clear exit guidance.

Compatible with dual voltage systems: 120V/277VAC for U.S. and 120V/347VAC for Canadian markets.

Includes a 3.6V 600mAh Ni-Cd rechargeable battery providing at least 90 minutes of emergency operation.

Fully charges within 24 hours.

Built-in test button and charge indicator light allow easy routine maintenance.

Removable front cover facilitates installation and battery access.

Certified to UL, CEC, DOE, and FCC standards.

Operating temperature range: 0-40°C; suitable for indoor damp locations.

Ordering Information

Model	JEL1GW/JEL1RW
Main Specifications	6 inch, 12 LEDs, 3.6V 600ml Ni-Cad battery, 12W, acrylic panel,3.5W

Product Size	377×273×42mm
MOQ	1000pcs
Lead Time	35 days
Sample Delivery Time	3~10 days
Remarks		Single face, without recessed mounting


Packing Information
Packing		White box
Carton Size (L×W×H)		39×38×30.5cm
Carton CBM		0.045m³
Quantity per Carton		6pcs
Gross Weight		10.1kgs/ctn
Net Weight		7.6kgs/ctn
Container Loading Quantity		1×20'	1×40'	1×40' HQ
		3667pcs	7667pcs	8933pcs
