A2 Flame Resistant Building Covering Aluminum Composite Panel
Application

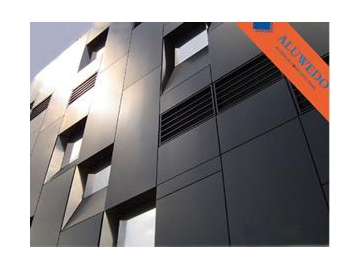

Due to its excellent flame resistance, our A2 flame resistant building covering aluminum composite panel could be installed on both interior and exterior walls for efficient blocking toward flame, thus to ensure the security of human and property.
Features
A2 flame resistant building covering aluminum composite panel gets rid of the disadvantages of traditional ACP and possesses many extra outstanding properties, like, gorgeousness, decorativeness, weather resistance, corrosion resistance, impact resistance, humidity resistance, thermal resistance, vibration resistance, fire-proof and sound-proof, light weight, workability, and easy to install and transport, while not sacrificing the original strength of its raw materials – aluminum and PE materials.
| Specifications Of Aluminum Composite Panel | |
| Normal Width | 1220mm, 1250mm, 1500mm, 1570mm, 2000mm |
| Panel Thickness | 2mm 3mm 4mm 5mm 6mm |
| Aluminum Alloy | AA1100, AA3003, AA5005(Other Grade On Requirements) |
| Aluminum Skin Thickness | 0.08mm ~ 0.60mm |
| Coating | PE/PVDF/FEVE/NANO/Anti-scratch/Mill |
| PE Core | Recycle PE Core/Fireproof PE Core/Unbreakable PE Core |
| Color | Solid/ Glossy/Matt/Metallic/Marble/Wooden/Brush/Mirror/Embossed |
| Length | 5800mm in maximum for 20ft container |
| Delivery | 15 to 20 days after order confirmed and receiving deposit |
| MOQ | 600 to 1000 m2 per color |
| Brand/OEM | ALUWEDO®/ Customized |
| Payment Terms | T/T/ L/C at sight/Western Union |
| Packing | By bulk; In Wooden Package |
| Technical properties | ||||
| Section modulus | W | DIN 53293 | [cm³/m] | 1.75 |
| Rigidity | E·J | DIN 53293 | [kNcm²/m] | 2400 |
| Alloy / Temper of aluminum Layers | EN 573-3 EN 515 | A3003H18 | ||
| Modulus of Elasticity | EN 1999 1-1 | [N/mm²] | 70.000 | |
| Tensile Strength of aluminum | EN 485-2 | [N/mm²] | Rm ≥ 130 | |
| 0.2 % Proof Stress | EN 485-2 | [N/mm²] | Rp0,2 ≥ 90 | |
| Elongation | EN 485-2 | [%] | A50 ≥ 5 | |
| Linear Thermal Expansion | EN 1999 1-1 | 2.4 mm/m at 100ºC temperature difference | ||
| Core | ||||
| Mineral filled polymer | ||||
| Surface | ||||
| Coating | Fluorocarbon (e.g. PVDF Kynar 500 ) | |||
| Coating thickness | um | >32(3 coating) > 25 ( 2 coating) | ||
| Gloss (initial value) | EN 13523-2 | [%] | 30-60 | |
| Pencil Hardness | EN 13523-4 | HB-F | ||
Description

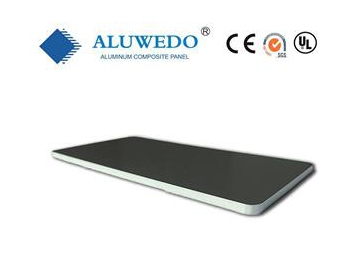

A2 flame resistant building covering aluminum composite panel owns two layers of aluminum panels, featuring high strength and rust-proof and highly resistant to flame. Meanwhile, since its middle layer is made of inorganic mineral, one hundred percent natural, which is also flame resistant. An excellent flame resistance could be guaranteed.
Aluminum panel's surface undergoes the cleaning with active agents, oxidization with chemical solvent, and roller painting with baked enamel. So after high temperature lamination, a brand new flame resistant panel could be produced.
Meanwhile, since our A2 aluminum composite panel is made of two complete different materials, one of metal material and the other of nonmetal material, many excellent properties are obtained.
Aluwedo is a reliable A2 flame resistant aluminum composite panel manufacturer and supplier, offers a wide range of interior and exterior decorative ACP panels for customers. Our aluminum composite panels can be used as architectural wall cladding, building façade, advertising signage, commercial entryway, etc. From the raw material selection, panel manufacturing and surface coating, each step is under strict control, we are sure to offer quality flame retardant ACP composite panels with competitive prices.
