B1 Flame Resistant Building Aluminum Composite Panel
Application

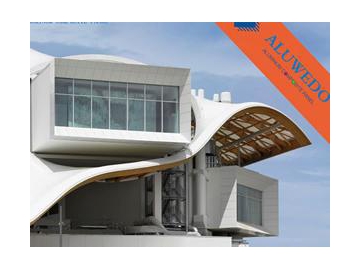

Due to its excellent flame resistance, our B1 flame resistant building aluminum composite panel could be installed on building walls for decoration. Meanwhile, since its flame resistance and its retardant to generate harmful gas during burning, people are allowed to evacuate timely from dangerous places.
Features
B1 flame resistant building aluminum composite panel gets rid of the disadvantages of traditional ACP and possesses many extra outstanding properties, like, gorgeousness, decorativeness, weather resistance, corrosion resistance, impact resistance, humidity resistance, thermal resistance, vibration resistance, fire-proof and sound-proof, light weight, workability, and easy to install and transport, while not sacrificing the original strength of its raw materials – aluminum and PE materials.
| Specifications Of Aluminum Composite Panel | |
| Normal Width | 1220mm, 1250mm, 1500mm, 1570mm, 2000mm |
| Panel Thickness | 2mm 3mm 4mm 5mm 6mm |
| Aluminum Alloy | AA1100,AA3003,AA5005(Other Grade On Requirements) |
| Aluminum Skin Thickness | 0.08mm ~ 0.60mm |
| Coating | PE/PVDF/FEVE/NANO/Anti-scratch/Mill |
| PE Core | Recycle PE Core/Fireproof PE Core/Unbreakable PE Core |
| Color | Solid/ Glossy/Matt/Metallic/Marble/Wooden/Brush/Mirror/Embossed |
| Length | 5800mm in maximum for 20ft container |
| Delivery | 15 to 20 days after order confirmed and receiving deposit |
| MOQ | 600 to 1000 m2 per color |
| Brand/OEM | ALUWEDO®/ Customized |
| Payment Terms | T/T/ L/C at sight/Western Union |
| Packing | By bulk; In Wooden Package |
| Technical properties | ||||
| Section modulus | W | DIN 53293 | [cm³/m] | 1.75 |
| Rigidity | E·J | DIN 53293 | [kNcm²/m] | 2400 |
| Alloy / Temper of aluminum Layers | EN 573-3 EN 515 | A3003H18 | ||
| Modulus of Elasticity | EN 1999 1-1 | [N/mm²] | 70.000 | |
| Tensile Strength of aluminum | EN 485-2 | [N/mm²] | Rm ≥ 130 | |
| 0.2 % Proof Stress | EN 485-2 | [N/mm²] | Rp0,2 ≥ 90 | |
| Elongation | EN 485-2 | [%] | A50 ≥ 5 | |
| Linear Thermal Expansion | EN 1999 1-1 | 2.4 mm/m at 100ºC temperature difference | ||
| Core | ||||
| Mineral filled polymer | ||||
| Surface | ||||
| Coating | Fluorocarbon (e.g. PVDF Kynar 500 ) | |||
| Coating thickness | um | >32(3 coating) > 25 ( 2 coating) | ||
| Gloss (initial value) | EN 13523-2 | [%] | 30-60 | |
| Pencil Hardness | EN 13523-4 | HB-F | ||
Description
B1 flame resistant building aluminum composite panel, as a new building decoration material, is composed of flame retardant plastic core and two layer of aluminum panels. With the introduction of flame resistant material, B1 class of ASTM E84-08 standard test could be realized. Meanwhile, since it is an eco-friendly product, it will not generate any harmful gas even when there is a burning.
Aluwedo is a reliable B1 flame resistant building aluminum composite panel manufacturer and supplier, offers a wide range of interior and exterior decorative ACP panels for customers. Our aluminum composite panels can be used as architectural wall cladding, building façade, advertising signage, commercial entryway, etc. From the raw material selection, panel manufacturing and surface coating, each step is under strict control, we are sure to offer quality flame resistant ACP composite panels with competitive prices.
