Automatic Hang Tag Eyeleting Machine, UM-90Z
Request a Quote

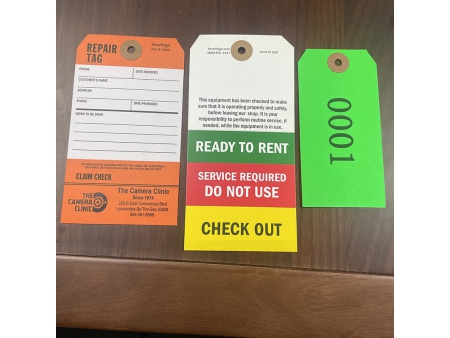

Our automatic hang tag eyeleting machine boosts efficiency, featuring a servo motor and PLC control system. It effortlessly handles feeding, sticker eyelet application, punching, counting, and output, reaching speeds of up to 3600 units per hour. It is well-suited for standard hang tags up to a maximum size of 90×180 mm. For larger tag sizes, we offer our UM-160Z model.
Details
Main Components
Main Components

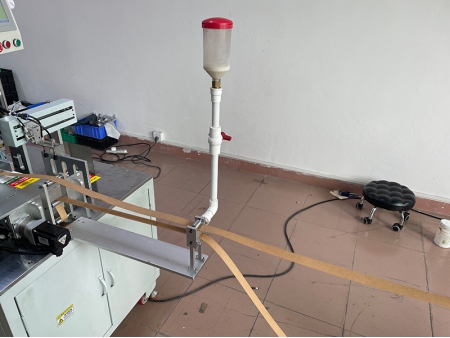

Adhesive application

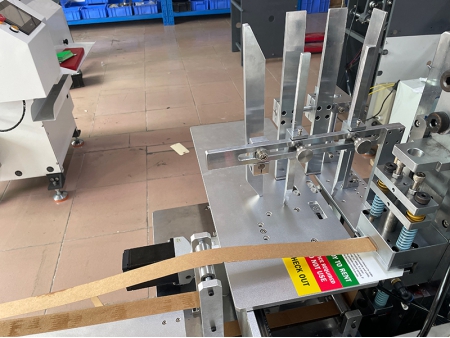

Hang tag positioner

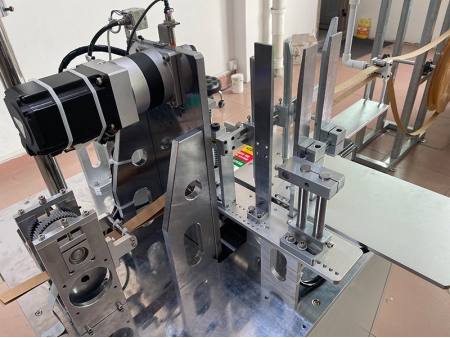

Punching and forming

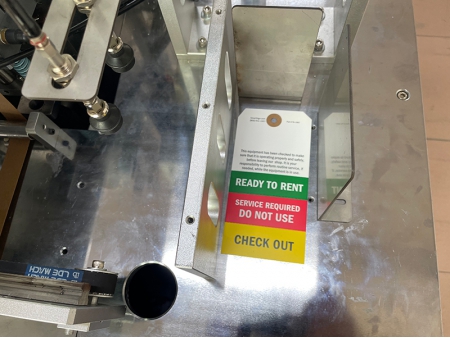

Tag collection box
Specifications
| Model | UM-90Z |
| Min. tag size | 30*35mm |
| Max. tag size | 90*180mm |
| Speed | 3600pcs/h |
| Roll paper width | 26mm |
| Dimensions | 750*750*1570mm |
| Paper roll holder | 600*400*1320mm |
| Machine weight | 260kg |
| Gross weight | 310kg |
