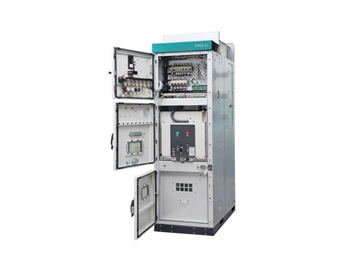

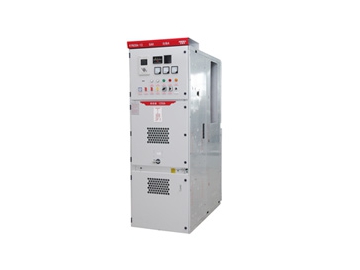

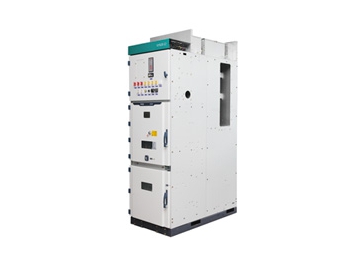

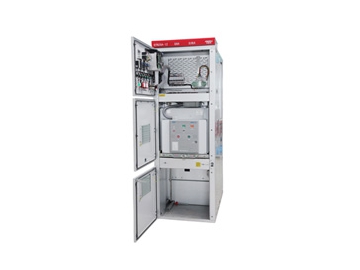

12/24kV medium-voltage switchgear is indoor metal-clad switchgear used to receive and distribute 3-phase AC 50Hz electric power with rated voltage of 12/24kV, and can provide control and protection of circuits. Various microprocessor-based relay protection units can be installed to achieve intelligent control, integrating functions of remote controlling, remote measuring, remote signaling and remote regulating. This medium-voltage switchgear can be configured with different types of vacuum circuits breakers or vacuum contactors.

• IEC 62271-1: High-voltage switchgear and controlgear - Part 1: Common specifications
• IEC 62271-100: High-voltage switchgear and controlgear – Part 100: Alternating-current circuit-breakers
• IEC 62271-102: High-voltage switchgear and controlgear - Part 102: Alternating current disconnectors and earthing switches
• IEC 62271-200: High-voltage switchgear and controlgear - Part 200: AC metal-enclosed switchgear and controlgear for rated voltages above 1kV and up to and including 52kV

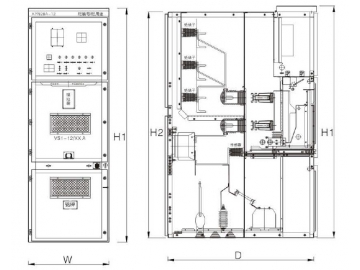

• Switchgear enclosure and partitioning panels are made of high quality aluminum-zinc coated steel sheets; Protection level IP4X for the enclosure, and IP2X the partition between compartments;
• The switchgear can be wall-standing installed to save floor space, or free-standing installed to make it accessible from two sides;
• Correct operation performance is guaranteed by safety interlocks, providing high level of reliability;
• Main busbar system connected from one switchgear to another is fixed by utilizing branch connections and fixed contactors.
• Cable compartment can be equipped with current transformer, earthing switch, surge arrester and cable; Removable aluminum plate at bottom for cable entry;
• Low-voltage compartment can be configured with various relays, instruments, signal indicators, switches, etc.; Small busbar compartment can be added at the top of instrument compartment;
• Pressure relief units are mounted at the top of circuit breaker compartment, busbar compartment and cable compartment, protecting the safety of operator and switchgear;
