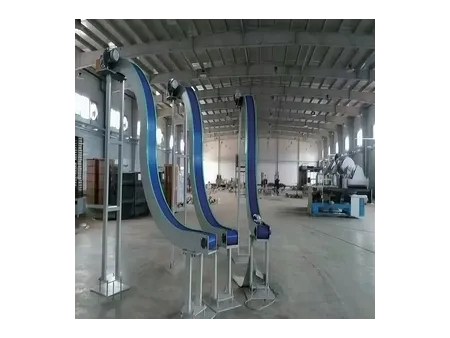

Can Body Magnetic Elevator (Z Type/S Type/C Type)
Request a Quote
Magnetic belt conveyor for lifting and conveying tinplate cans in Z, S or C-shaped conveying layouts
The can body magnetic elevator works on the attraction force of permanent magnets. A strong magnetic field holds the cans firmly against the moving belt, and the motor-driven belt then lifts and transfers the cans to the required height.
Depending on your line layout, the elevator can be designed in Z, S or C configurations, giving you flexible options to fit existing equipment and available floor space.
Specifications
| Model series | |
| Structure & materials | Side frames: powder coated carbon steel; magnetic body: stainless steel; conveying belt: high-speed, wear-resistant POM modular belt |
| Suitable products | All types of tinplate cans |
| Applicable can size | Diameter 50–200 mm, height 50–200 mm |
| Production capacity | 300–800 cans per minute, frequency inverter control, smooth start and stop |
| Dimensions | Customized according to on-site installation position |
| Motor power | 1.5 kW, 380 V |
