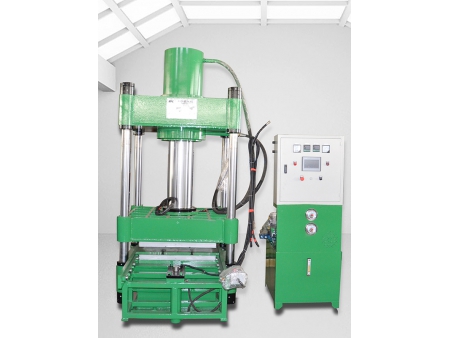

Solid Tire Vulcanizing Press
Request a Quote
Solid Tire Vulcanizer, Solid Tire Machine, Solid Tire Building Machine
Mold For Production
- Structure: multiple frame type, with two daylights
- Cylinder and piston: The press is adopted with one cylinder, made of high quality cast steel. The material of the piston is alloyed chilled cast iron, of which hardness is measured at HRC65-75.
- Control system: PLC system, made by Siemens. The actions can be programmed with the PLC controller.
- Manual mold sliding device, for each daylight The device contains moving platen and bearings guiding unit. The bottom mold is mounted onto the moving platen, with “T” slots. The moving platen can be driven in and out on the bearings guiding unit by hand. The improved bearing guiding unit makes the operation easy and comfortable.
- Lifting and automatic mold opening device When the mold opens, the device rises to the bottom daylight. The bottom mold can be pulled out onto the device, then the mold opening cylinders will open the top mold, and eject the cured tire up for removal
- Hydraulic unit
Specifications
- Model: XLB-Q1200×1200×2/6.0MN (multiple frames structure)
- Clamping force: 600 tons
- Heating platen size: 1200×1200×90mm
- Unit pressure on heating platen: 4.2Mpa
- Daylight opening: 550mm
- Daylight quantity: 2
- Max. Piston stroke: 500mm
- Mold closing speed: min. 20mm/s
- Mold opening speed: min. 20mm/s
- Rated hydraulic system pressure: 18.1Mpa
- Cylinder diameter: Ф650mm
- Cylinder quantity: 1
- Motor power: 11 7.5kw
- Weight: 24000kgs
