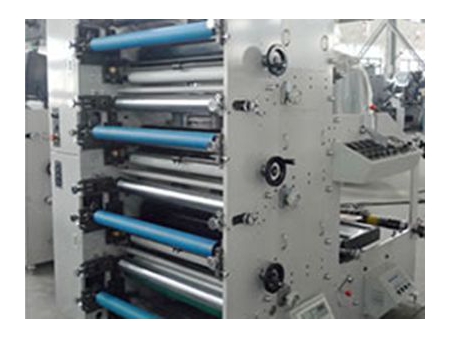

Flexo Printing Machine (4-6 Colors), ZBS-820
Request a Quote
- Printing speed 50m/min
- Printing color 4-6 colors
- Max. width of paper 820mm
- Max .printing width 810mm
Features
- This ZBS-820 flexo printing machine makes use of the ceramic anilox roll to transfer the ink.
- It is configured with the unwinding and rewinding units with magnetic powder brakes and clutches and Mitsubishi auto tension controller.
- Each printing unit is collocated with 360 degree adjustable printing plate and hot air dryer.
- Separated from the printing roller automatically, the ink roller keeps rotating at low speed to prevent the ink from drying when the flexo printing machine stops.
- The main motor is designed with an imported continuously variable frequency speed governor, showing the stable performance of the machine.
- Capable of accomplishing the material feeding, printing, vanishing, drying and rewinding at one stroke, this product is an ideal printer for paper cup, packaging label and so on.
- This flexo printing machine is not equipped with rotary die cutting station, waste rewinder, lamination device, turning bar, etc.
Technical Specifications
| Model | ZBS-820 |
| Printing speed | 50m/min. |
| Printing color | 4-6 colors |
| Max. width of paper | 820mm |
| Max .printing width | 810mm |
| Max. unwinding/rewinding diameter | 600mm |
| Printing length | 175-355mm |
| Thickness of flexo plate | 1.7mm or 1.14mm |
| Precision of chromatography | ±0.1mm |
| Dimension | 2.1m×1.75m×3.1m |
| Machine weight | About 3500kg |
Shipping Information
| Packing | Export standard wooden case |
| Model No. | ZBS-820 |
| Standard | 4-6 colors |
| Productivity | 15 sets per month |
| Unit Price/Payment | USD16000-USD65000 |
| H.S. Code | 84431600 |
| Trademark | WEIGANG |
| Origin | China |
| Min. Order | 1 set |
| Transportation | Land, sea, air |
Options
- Web guiding system
- UV dryer
- Special unwinder combined with rewiner with the diameter up to 1000mm
- Video inspecting system
- Elctric hoist
Details
- 4 colors
- Web guiding system

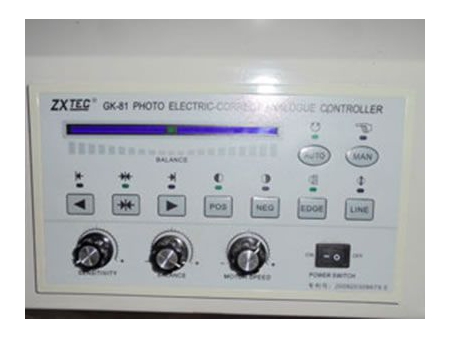

- Video inspecting system
- Special unwinder combined with rewiner diameter up to 1000mm
- Special unwinder combined with rewiner diameter up to 1000mm
