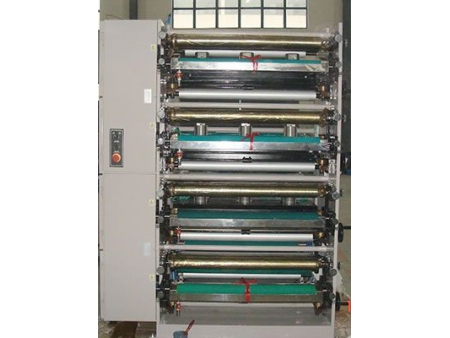

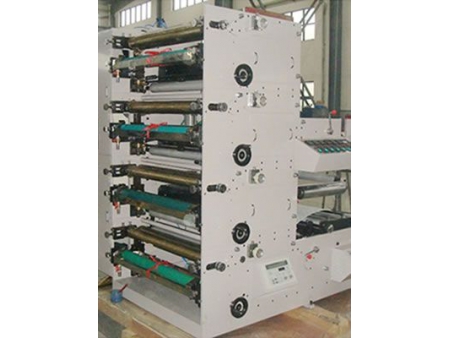

Flexo Printing Machine (4-6 Colors), ZBS-620
Request a Quote
- Printing speed 50m/min
- Printing color 4-6 colors
- Max. width of paper 650mm
- Max .printing width 620mm
Features
- This ZBS-620 flexo printing machine transfers the ink through ceramic anilox roll effectively.
- Its unwinding and rewinding units are designed with magnetic powder brakes and clutches, and Mitsubishi automatic tension controlling device.
- Each printing unit is equipped with a hot air dryer and a 360 degree adjustable printing plate.
- If the flexo printing machine stops, its ink rollers will keep running at low speed after parting with the printing rollers so as to prevent the ink from drying.
- Mounted with imported continuously variable frequency speed controller, the main motor maintains stable performance all the time.
- Capable of feeding material, printing, vanishing, drying and rewinding at one stroke, this product is extremely applicable for printing paper cups, packaging labels and so on.
- This ZBS-620 flexo printing machine is not mounted with rotary die cutting station, waste rewinder, laminating device and turning bar at all.
Technical Specifications
| Model | ZBS-620 |
| Printing speed | 50m/min. |
| Printing color | 4-6 colors |
| Max. width of paper | 650mm |
| Max .printing width | 620mm |
| Max. unwinding/rewinding diameter | 600mm |
| Printing length | 175-355mm |
| Thickness of flexo plate | 1.7mm or 1.14mm |
| Precision of chromatography | ±0.1mm |
| Dimensions | 2.1m×1.55m×3.1m |
| Machine weight | About 3500kg |
Shipping Information
| Packing | Export standard wooden case |
| Model No. | ZBS-620 |
| Standard | 4-6 colors |
| Productivity | 15sets per month |
| Unit Price/Payment | USD16000-USD65000 |
| H.S. Code | 84431600 |
| Trademark | WEIGANG |
| Origin | China |
| Min. Order | 1 set |
| Transportation | Land, sea, air |
Options
- Web guiding system
- UV dryer
- Special unwinder combined with rewiner with the diameter up to 1000mm
- Video inspecting system
- Elctric hoist
Details
- 4 colors
- 4 colors
- 5 colors paper cup printer
- 5 colors paper cup printer
- 5 colors paper cup printer
- Web guiding system
- Video inspecting system
- Special unwinder combined with rewiner with the diameter up to 1000mm
