6 Color CI Flexo Printing Machine
Request a Quote
Technical Parameters
| Model | CI-600 | CI-800 | CI-1000 | CI-1200 |
| Max. effective printing width | 550mm | 750mm | 950mm | 1150mm |
| Max. printing speed | 150m/min | 150m/min | 150m/min | 150m/min |
| Max. machine speed | 180 m/min | 180 m/min | 180 m/min | 180 m/min |
| Max. diameter of roll material | Ф800mm | Ф800mm | Ф800mm | Ф800mm |
| Range of print repeat length | 250-100mm | 250-100mm | 250-100mm | 250-100mm |
| Accuracy of Registration | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
| Plate thickness (both side adhesive included) | 1.7mm | 1.7mm | 1.7mm | 1.7mm |
| Heating power | 30kw | 30kw | 35Kw | 35Kw |
| Total power | 55Kw | 55Kw | 60Kw | 65Kw |
| Machine weight | 800kg | 8500kg | 10000kg | 11000kg |
| Overall Dimensions | L6500×W1700× H2500mm | L6500×W1900× H2500mm | L6500×W2100× H2500mm | L6500×W2300× H2500mm |
Main Parts Brand
| Main motor | Siemens 7.5kW/11kW |
| Inverter | Japan Yaskawa |
| Ink motor | Maili |

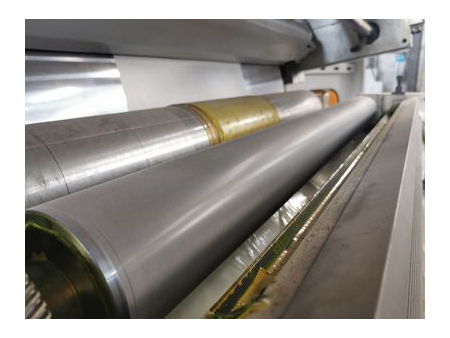

| Ceramic roller | Japan Murata |
| PLC | Siemens |
| Bearing | NSK Japan |

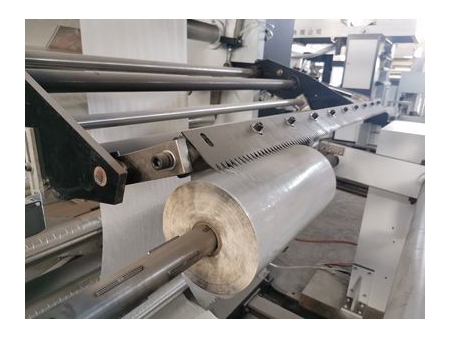

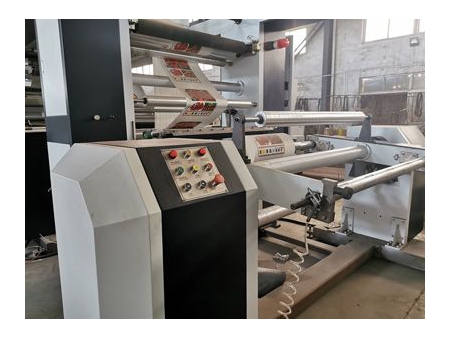

Main Parts: Unwinder
Double servo motor control, automatic roll changing (optional) Printing System

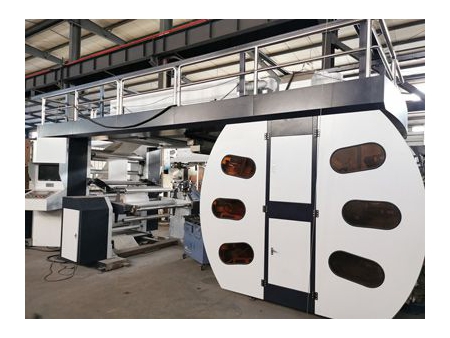

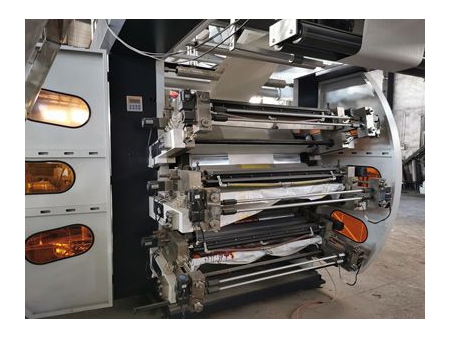

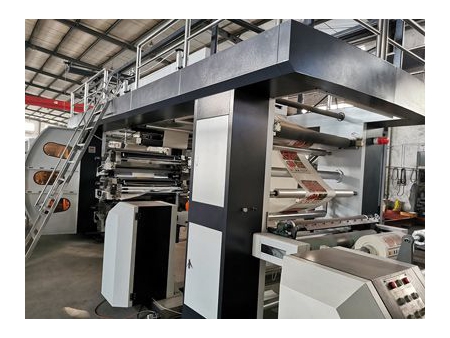

Central impression cylinder, diameter of 800mm/1200mm Whole CI Flexo Printing Machine
