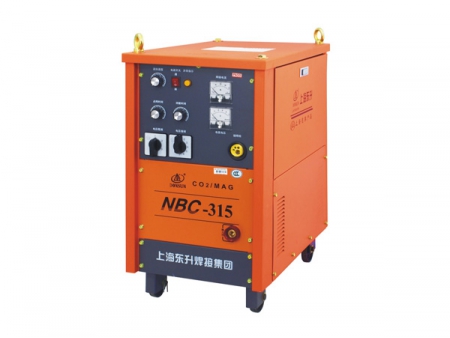

Integrated MIG/MAG Welder
Request a Quote
This integrated MIG/MAG welder belongs to an integrated type carbon dioxide gas shield welder, ideal for thin plate welding. With favorable electric arc performance, it lets you efficiently, rapidly to complete the welding task. Minimum spatters will be generated. In addition, it not only can be used as thin plate welding machine, but also lightweight structure welding equipment. The welding machine is ideal for the gas shielded welding of low-carbon steel and low alloy steel.
NBC-250
| Model | |
| Power Voltage/Frequency | 380V/50Hz |
| Phase Number | 3 |
| Rated Welding Current | 250A |
| Rated Load Voltage | 26.5V |
| Current Adjust Range | 50~250A |
| Open Circuit Voltage | 16~33V |
| Rated Duty Cycle | 35% |
| Wire Feed Speed | 3~15m/min |
| Spot/ Intermittent Welding Time | 0.2~5S |
| Intermittent Welding Spot Time | 0.2~5S |
| Weight | 108KG |
| Dimensions | 663×395×766(mm) |
NBC-315
| Model | |
| Power Voltage/Frequency | 380V/50Hz |
| Phase Number | 3 |
| Rated Welding Current | 315A |
| Rated Load Voltage | 30V |
| Current Adjust Range | 60~315A |
| Open Circuit Voltage | 16~36V |
| Rated Duty Cycle | 60% |
| Wire Feed Speed | 3~15m/min |
| Spot/ Intermittent Welding Time | 0.2~5S |
| Intermittent Welding Spot Time | 0.2~5S |
| Weight | 130KG |
| Dimensions | 663×395×766(mm) |
Features
- Output voltage of our integrated MIG MAG welder can be conveniently adjusted through changing the coils of main transformer. It is dedicated for sheet plate welding.
- This welding machine has a continuously adjustable function for burn-back accident control. Such function is designed to prevent the welding wires from being stuck together.
- It is equipped with a built-in wire feeding mechanism with good maneuverability.
- Its service life is greatly extended, as it applies the durable copper transformer winding.
- The welding machine allows for small welding heat affected zone. Welded product has small deformation and beautiful welding seams.
- It can protect itself from over heat and over current.
- A power supply for fan cooling system is equipped, which has greatly extended the operation time of the integrated MIG MAG welder.
