The separated MIG MAG welder of NBC series is also a carbon dioxide gas shield welder. It offers optimal welding current output. NBC-500 series offer the output range of 80-500A. Split type wire feeder enables the workpiece to be welded even at a place away from the welding power source. The welding machine is especially designed to be easily used. It can be conveniently controlled via a operation panel. It is usually serves as steel processing equipment, steel structure welding machine, or welder for mechanical processing.
Since high quality welding performance depends on the high quality feeding system, we have installed a powerful wire feeding system and electronic feedback system to the separated MIG MAG welder. Besides that, the welding machine has different shifts of voltage.
NBC-250
Model
NBC-250
Power Voltage/Frequency
380V/50Hz
Phase Number
3
Rated Welding Current
250A
Rated Load Voltage
26.5V
Current Adjust Range
50~250A
Open Circuit Voltage
16~33V
Rated Duty Cycle
35%
Wire Feed Speed
3~15m/min
Spot/Intermittent Welding Time
0.2~5S
Intermittent Welding Spot Time
0.2~5S
Weight
115KG
Dimensions
660×378×756(mm)

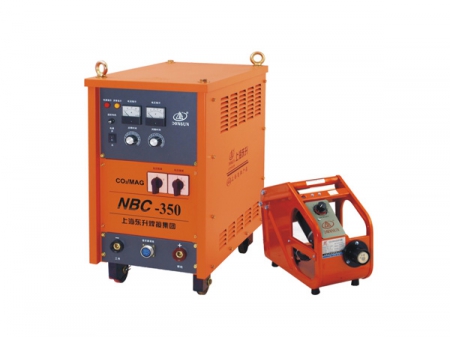

NBC-350
Model
NBC-350
Power Voltage/Frequency
380V/50Hz
Phase Number
3
Rated Welding Current
350A
Rated Load Voltage
31.5V
Current Adjust Range
60~350A
Open Circuit Voltage
18~40V
Rated Duty Cycle
60%
Wire Feed Speed
3~15m/min
Spot/Intermittent Welding Time
0.2~5S
Intermittent Welding Spot Time
0.2~5S
Weight
145KG
Dimensions
680×408×756(mm)

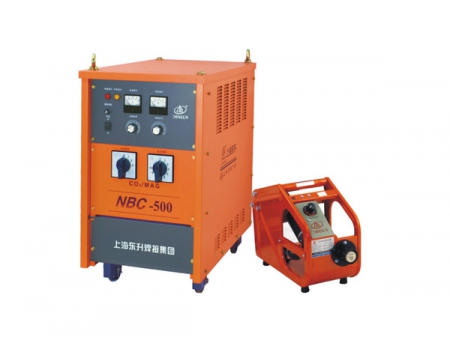

NBC-500
Model
NBC-500
Power Voltage/Frequency
380V/50Hz
Phase Number
3
Rated Welding Current
500A
Rated Load Voltage
39V
Current Adjust Range
80~500A
Open Circuit Voltage
19~50V
Rated Duty Cycle
60%
Wire Feed Speed
3~15m/min
Spot/Intermittent Welding Time
0.2~5S
Intermittent Welding Spot Time
0.2~5S
Weight
175KG
Dimensions
776×408×756(mm)
Features
Our separated MIG MAG welder applies three-phase bridge rectification for its main circuit, and uses direct current reactor to obtain higher short circuit frequency in the small current area. The short circuit frequency in the large current area is lower. Few spatters will appear.
It has a continuously adjustable function, with which the burn-back accident can be controlled. This function prevents the welding wires from being stuck together.
To prevent the excessive fatigue caused by long-time seam welding, the welding machine is designed with 2-step or 4-step control function.
It is added with a power supply for fan cooling system. The added configuration can significantly prolong the service life and improve the duty cycle.
The separated MIG MAG welder is designed with over heat protection function. It can automatically sense the heat so as to protect the welding operation.
It permits a small welding heat affected zone. Welded products has small deformation and beautiful welding seams.
