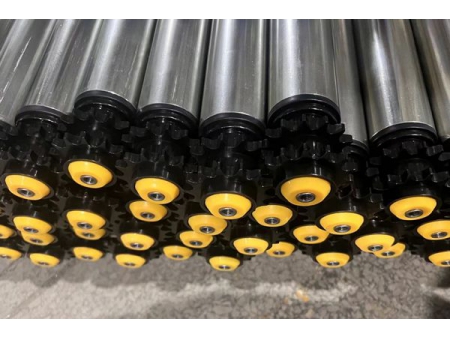

Sprocket Driven Conveyor Roller with Plastic Bearing Housing
Request a Quote
AL2213/AL2223
Power driven rollers for chain driven roller conveyor
Sprocket driven conveyor roller has a precision ball bearing with plastic inner/outer housings, and plastic-steel sprocket, greatly reducing operational noise. Long-term operation does not require regular greasing for rust prevention and lubrication of the sprocket, resulting in a long service life.
Features
- Self-lubricating with the steel chain, low maintenance, long service life
- Light weight, smooth operation, low noise, and attractive appearance
Applications
Chain-driven roller conveyors

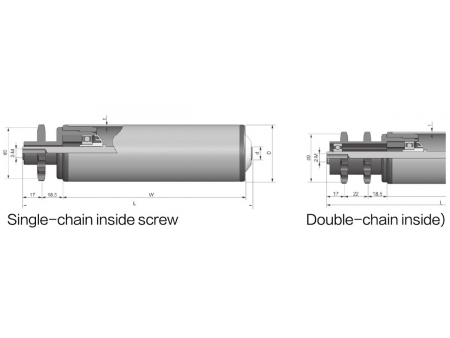

Technical Data
| Tube Diameter (D) | Tube Thickness (T) | Axis Diameter (d) | Sprocket | Tube Material | ||
| Galvanized Steel | Stainless Steel | Aluminum Alloy | ||||
| 50 | 1.5/2.0 | 12 | 08B11Z/08B14Z | √ | √ | √ |
| 60 | 2.0 | 12 | 08B14Z | √ | √ | √ |
