Full Rotation Range Gimbal Mirror Mounts
Request a Quote

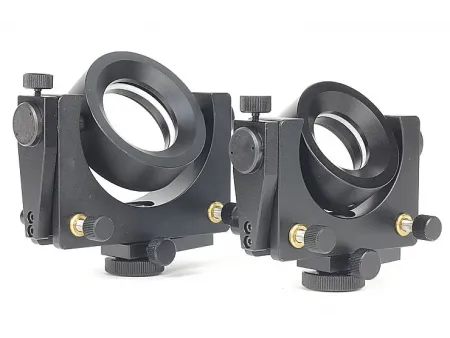

WN01WX(40-50) gimbal mirror mounts can do pitching and yawing at any angle; they guide the light beam in any desired direction. Two rotating axes are orthogonal and coplanar, so the lenses can also be adjusted orthogonally in the same plane, which makes the optical path constant. The mounts can do 360°course adjustment，±3°fine adjustment. Lens of different diameters can be mounted, the manual and electric adjustment is also provided.
- Two rotating axes are orthogonal and coplanar, so the lenses can also be adjusted orthogonally in the same plane, which makes the optical path constant.
- Equipped with M6x0.25 fine threaded screw.（brass nuts are added）
- 360°course adjustment，±3°fine adjustment.
| Model | WN01WX40 | WN01WX50 | |
| Adjustment range | Course adjustment | 360° | 360° |
| Fine adjustment | ±3° | ±3° | |
| A（Mounting hole diameter） | 40 mm | M52x1 | |
| B | 34 mm | 46 mm | |
| Weight | 0.6 kg | 0.7 kg | |
