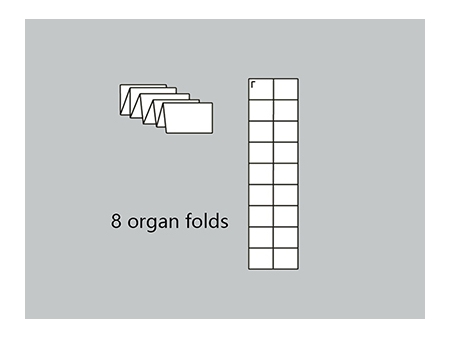

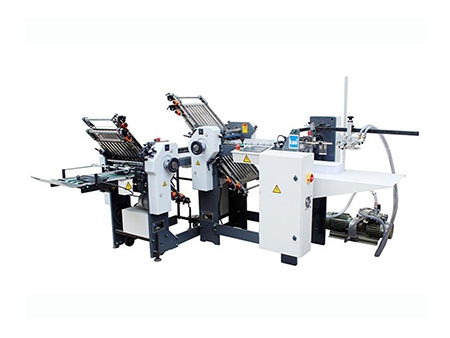

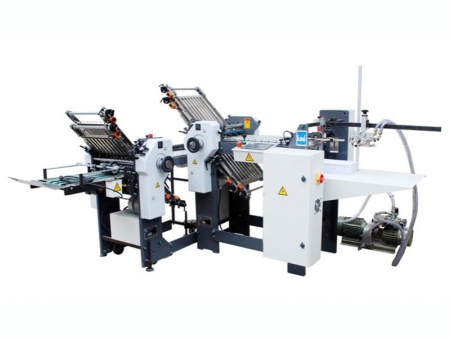

KMD’s 470T buckle folder (4 buckles and 4 buckles): The machine carries out a 4 times parallel folding through 4 buckles, with the tail buckles installed in both a horizontal and vertical manner to achieve a 4 time parallel or vertical folding. The folder carries out half folding, double parallel folding, roll folding and other folding methods.

Parameters
  • Max feeding sheet size (W*L): 470*750mm
  • Min feeding sheet size (W*L): 50*100mm
  • Sheet range: 40-157g
  • Max folding roller speed: 180m/min
  • Max. height of paper heap: 500mm
  • Machine power: 3.3kw
  • Machine netweight: 750kg
  • Overall dimension (L*W*H): 4000*1100*1415mm
