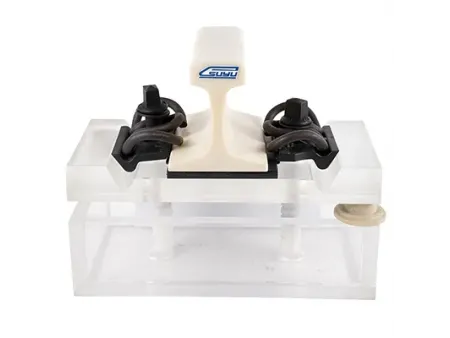

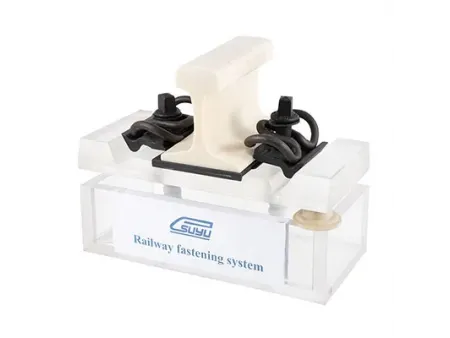

W14 Rail Fastening System
Request a Quote
High speed and conventional rail with concrete sleepers on ballasted track.
The W14 fastening system is designed according to the EN13481-2 standard, allowing a maximum axle load of 260kN. It can be primarily used for high-speed and conventional railways with concrete sleepers on ballasted tracks.
The fastening system offers secure rail fixation, reducing the risk of rail movement and enhancing overall track stability. Its advanced engineering and high-quality materials contribute to a longer service life, making it a cost-effective solution for modern railways.
Railway Fastening Components

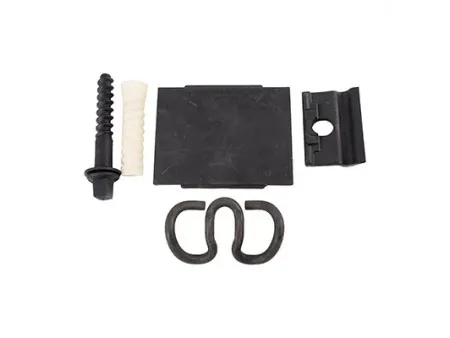

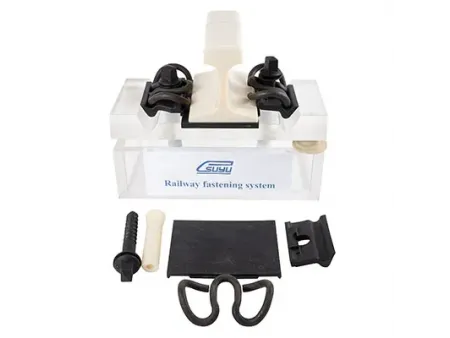

The complete W14 fastening system for each sleeper consists of the following components:

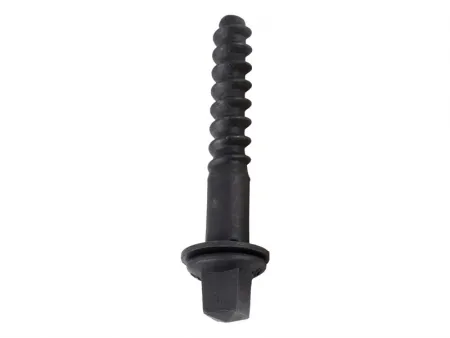

- 4 pcs Screw spike Ss25-160
- 4 pcs Flat washer UIs7

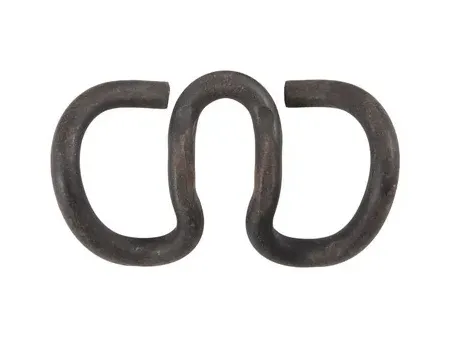

- 4 pcs Rail clip SKL14

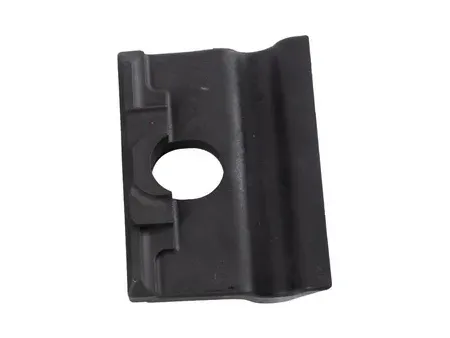

- 4pcs Guide plate Wfp14K-12

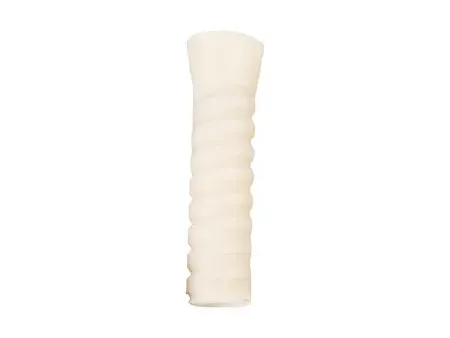

- 4 pcs Plastic dowel SDU9

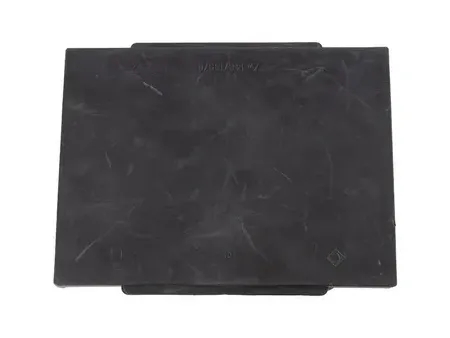

- 2 pcs Rail pad Zw148/185/6
Basic Information
- Speed - Suitable for high-speed rail (HS) at speeds ≥ 250 km/h and conventional rail (CR) at speeds ≤ 250 km/h.
- High rail longitudinal resistance - min. 9kN
- Electrical resistance ≥ 5 kΩ
- Clamping force for SKL14 (nominal) - min. 9kN
- Gauge adjustment in the range of ±10mm
- Rail pad material: EVA
- Possibility to use anti-theft screws with triangular heads
- All components can be pre-assembled at the sleeper factory
