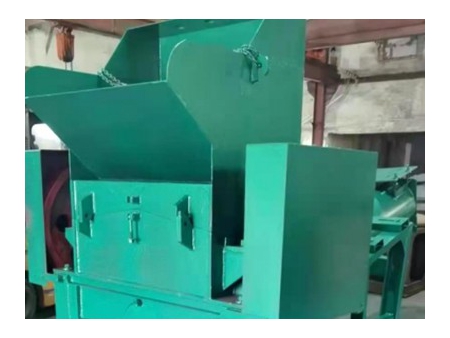

Plastic Crusher/Granulator (Wet Crusher)

Wet crushers are mainly used for recycled materials. Post-consumer plastics often carry oil, dust, and other surface contaminants. So, water is added during crushing to help wash away impurities at the same time. This reduces residue and improves the cleanliness of the material before pelletizing.

Wet Plastic Crusher (for Rigid Materials)

Wet crusher is used for rigid plastics such as plastic drums, bumpers, solid plastic blocks, and other hard products. Rotating blades work together with fixed knives to cut and compress the material, breaking it down into smaller flakes or particles.

Parameters

Model HS-600 HS-800 HS-1000 HS-1200
Crushing Capacity (kg/h) 600-800 800-1000 1000-1500 1500-2000
Stationary Cutter 4 4 4 4
Rotary Cutter 6 6 6 6
Power (kW) 22 45 75 90
Dimensions (L×W×H) (mm) 1200×1500×1800 1500×1800×2500 1800×2000×2500 2000×2200×3000
Net Weight (kg) 1000 1500 2500 4000
Wet Plastic Crusher (for Soft Materials)

Designed for soft plastics such as films and packaging bags, this wet crusher uses V-shaped or claw-type blades. The blades are sharp yet durable, helping prevent wrapping and sticking during operation. The crusher operates with a controlled cutting action that produces evenly sized fragments ideal for further processing.

Parameters

Model HS-600 HS-800 HS-1000 HS-1200
Crushing Capacity (kg/h) 500-600 600-1000 1000-1500 1500-2000
Stationary Cutter 4 4 4 4
Rotary Cutter 6 6 6 6
Power (kW) 22 30 55 75
Dimensions (L×W×H) (mm) 2000×1500×1800 2500×2000×2000 3000×2000×2200 3500×2200×2500
Net Weight (kg) 1200 2000 3500 4500
Lifting Conveyor Power (kW) 7.5 15 18.5 22
Heavy Duty Plastic Crusher/Granulator

This heavy-duty crusher is mainly used for relatively clean plastic scrap. It can handle both soft and rigid materials. When processing soft plastics, the focus is on preventing wrapping and achieving fast cutting. It combines sharp blades, high rotational speed, and a large-aperture screen to improve material flow. A hob-cutter, with cutting principle similar to a scissor, can be used for both tearing and cutting plastic. This helps reduce tangling issues that are common with soft materials.

Specifications

Model HS-230 HS-300 HS-400 HS-500 HS-600 HS-800
Crushing Chamber (mm) 230×200 310×200 410×235 515×290 610×320 815×470
Crushing Capacity (kg/h) 100~150 150~200 200~250 300~350 350~450 450~600
Stationary Cutter 2 2 2 2 4 4
Rotary Cutter 6 9 12 15 18 24
Power (kW) 4 5.5 7.5 11 15 22/30
Power (HP) 5 7.5 10 15 20 30/40
Dimensions (L×W×H) (mm) 970×610×1200 1030×720×1390 1030×840×1390 1320×1010×1830 1320×1110×1830 1730×1490×2300
Net Weight (kg) 290 435 500 900 970 2000

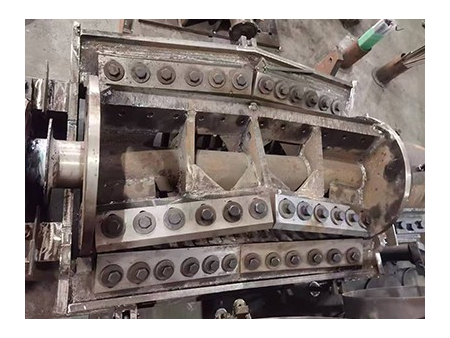

Double Shaft Plastic Shredder

The double shaft shredder works through a combination of shearing, tearing, and pulling forces. Its consists of two counter-rotating shafts that are fitted with specially designed blades. As the shafts rotate in opposite directions, the blades grip and tear the material from both sides. This breaks the metrial down into smaller pieces with better control and efficiency.

Specifications

Model HS-800 HS-1000 HS-1200 HS-1400 HS-1600
Power (kW) 22 30 37 45 55
Crushing Chamber (mm) 800×400 1000×520 1200×750 1400×750 1600×750
Rotation Blade Quantity 12×2 rows 16×2 rows 20×2 rows 17×2 rows 20×2 rows
Blade Thickness (mm) 32 31 29 40 40
Output Capacity (kg/h) 400-600 500-1000 600-1200 1000-2000 1500-3000
Machine Weight (kg) 4000 4800 5500 6000 7500
Dimensions (L×W×H) (mm) 2600×720×500 2800×1000×400 3100×1100×500 3600×1500×600 4000×1500×650

Features

  • A larger flywheel enhances inertia, helping improve crushing efficiency while reducing motor load. The output material size remains relatively uniform.
  • The motor is equipped with overload and power protection systems to safeguard both the motor and cutting tools.
  • Blades are made from high-chromium alloy steel, providing strong wear resistance and long service life.
  • The blade holder undergoes heat-shrink treatment and strict balancing tests, contributing to stable operation and structural reliability.
  • The screen can be welded with stainless steel for improved wear resistance.
  • Waste material can be fed directly without pre-flattening, simplifying handling.
  • The wide inlet allows easier loading. Optional double-layer sound insulation around the discharge area helps reduce noise and vibration for quieter operation.
  • The hydraulic system for opening and closing cover makes blade replacement more convenient.
Sound-Proof Plastic Waste Crusher

This sound-proof plastic crusher is designed for recycling general plastic products and production scrap. The blade design combines features of both claw and flat types, so it handles sheets, pipes, profiles, boards, packaging waste, and even injection runners without trouble. Sealed bearings are used to keep the shaft running smoothly, even during long hours of operation. The blade design supports even particle size after crushing, and the blade holder undergoes heat-shrink treatment for structural strength. Its layout is compact and easy to integrate, with a simple and functional design.

Specifications

Model JL-500 JL-600 JL-800
Crushing Chamber (mm) 500x350 600x420 800x500
Crushing Capacity (kg/h) 200-400 300-500 350-550
Stationary Cutter 2 2 4
Rotary Cutter 17 22 28
Power (kW) 11 15 22
Dimensions (L×W×H) (mm) 1440×1060×830 1800×1400×1100 2150×1610×1400
Machine Weight (kg) 600 950 1750
