Infrared Sterilizing Tunnel Oven
Request a Quote
Conveyor belt with far-infrared heater for drying and sterilization of bottles and containers
Conveyor belt with far-infrared heater for drying and sterilization of bottles and containers

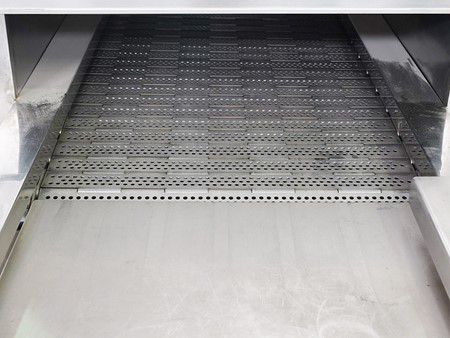

Made of durable stainless steel, our infrared sterilizing tunnel oven conveys bottles via a stainless steel conveyor to the tunnel oven, where far infrared heating tubes efficiently dry and sterilize the containers.
What sets this solution apart is its customizable design, tailored to the specific filling speed and bottle size requirements of your production line. While applicable exclusively to glass bottles, it serves a wide array of functions, including ampoule, vial, and container sterilization for both food and pharmaceutical filling lines. However, it's important to note that it cannot be used with metal bottles.
Food, medical, pharmaceutical, laboratory, and other industries.
Specifications| Drying speed | ＞3000bph (conveyor belt speed is adjustable) |
| Working temperature | Room temperature to 300℃ |
| Power supply | 380V/50Hz, 40kW |
| Dimensions | 6500×850×2200mm (customizable based on required productivity) |
