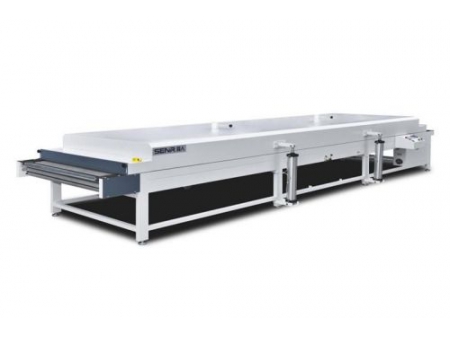

Infrared Tunnel Oven
Request a Quote
Power supply | AC380V 3φ 50Hz 120kW |
Internal dimension | W1500mm×L17000mm×H100mm, |
External dimension | W1660mm×L20000mm×H1380mm (for reference only, customizing at your desire) |
Detailed dimension | 1.Feeding zone: 1500mm, conveyor altitude height: 900 mm. |
2. Heating zone: 17000 mm. (divided into 5 sections and each section has length of 3400mm and equipped with individual temperature controller and additional over temperature control & display, as well as SSR (silicon controlled rectifier) power control to minimize temperature fluctuation.) | |
3.Discharging zone: 1500mm. | |
4.Conveyor width: 1350 mm, effective conveyor width: 1300 mm, feed/discharge opening height: 100 mm. | |
5. The heating tube is easily detached without disassemble the oven. | |
Temperature control system | 1. Temperature range: room temperature 25℃~300℃, it takes approximately 35 minutes heating from room temperature to 300℃. |
2. Controller: adopts XZ-960 temperature controller, digital setting, PID automatic calculation, LED display. | |
3. The temperature controller has accuracy within ±0.5%FS; Temperature uniformity ±2%. (tested without loading) | |
4. The equipment surface temperature is less than room temperature 15℃ while operating. | |
Functions | 1. Fast drying speed with uniform temperature spreading. |
2. SSR (silicon controlled rectifier) power control to minimize temperature fluctuation. | |
3. Multiple layers of thermal insulation with good sealing results. | |
4. The equipment frame adopts welded metal square tubes, and strengthened with steel channels. | |
5. Steady transportation to keep products in position. | |
6. Energy saving, the steady output is only ¼ of rated output power. |
