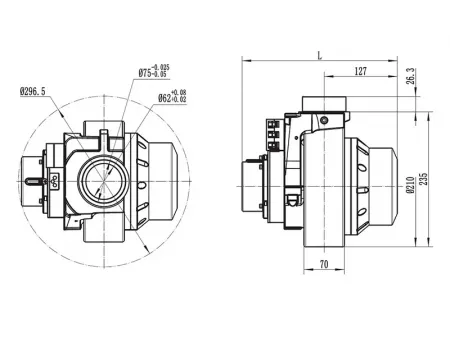

1200W Drive Motor Assembly, PMDC Brushless Motor TF110BH1-JY120X.32
Request a Quote
Your Motion
Features
Designed for strong, consistent output, this drive motor assembly combines high load capacity with a compact, economical structure. Its refined build ensures smooth operation and dependable performance in demanding material-handling environments.
Applications
It is suitable for a wide range of electric material-handling machines, including electric pallet trucks and electric pallet jacks, delivering stable and efficient drive support.
Technical Specifications
| Braking Mode | EM Brake/8N.m/48V |
| Matched Gear Ratio | 32:1 |
| Matched Motor | TF110B/BLDC Motor |
| Rated Voltage (V) | 48 |
| Rated Power (W) | 1200 |
| Rated Torque (N.m) | 3.5 |
| Rated Current (A) | ≤30 |
| Rated Revolution (RPM) | 3250 |
| No-load Current (A) | ≤5 |
| No-load Revolution (RPM) | 3750 |
| Rated Efficiency (%) | ≥78 |
| Working Cycle (min.) | S2-45 |
| Insulation Class | F |
| Protection Level | IP44 |
| Motor Length | 254 |
