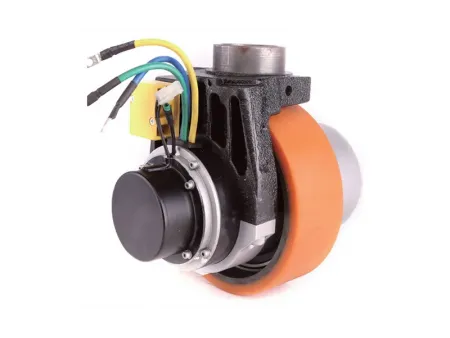

750-1000W Drive Motor Assembly (PMDC Brushless Motor) TF110BH1-JY120X

750-1000W Drive Motor Assembly (PMDC Brushless Motor) TF110BH1-JY120X
750-1000W Drive Motor Assembly (PMDC Brushless Motor) TF110BH1-JY120X
750-1000W Drive Motor Assembly (PMDC Brushless Motor) TF110BH1-JY120X
Request a Quote
Power
Your Motion

Application: electric material handling equipment

Technical Specifications
Rated Power (W) 750 1000
Rated Voltage(V) 48 48
No-load Current(A) ≤3.5 ≤8.0
No-load Revolution (RPM) 3800±8% 3950±8%
Rated Torque (N•m) 2.27 3.0
Rated Revolution (RPM) 3150±8% 3200±8%
Rated Current(A) ≤18.5 ≤50.0
Working Cycle (min.) S2-60 S2-60
Insulation Class F F
Protection Level IP44 IP44
Gear Ratio 32:1 32:1
E-brake Voltage (V) 48 48
E-brake Torque(N•m) 8 8
Length (L/mm) 252 256.7

Note: customized BLDC drive motor assembly is available according to your application requirements and working conditions.
