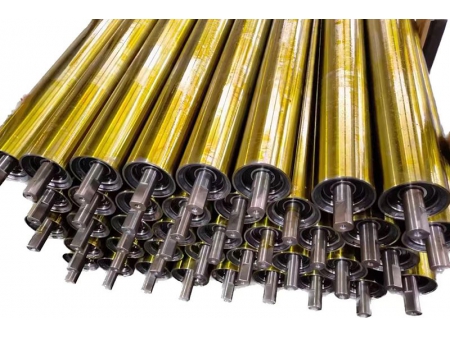

Steel Conveyor Roller with Internal Bearings

Steel Conveyor Roller with Internal Bearings
Steel Conveyor Roller with Internal Bearings
Steel Conveyor Roller with Internal Bearings
Request a Quote
ALNC

Carrying rollers for conveyor systems

Application:

Steel conveyor roller with internal bearings is suitable for the head and tail rollers of belt conveyors, tensioning roller sections, and can also be used for carrying rollers requiring higher load-bearing capacity.

Features
  • Utilizes precision bearing.
  • Customizable dimension is optional.
  • Various installation methods are available.

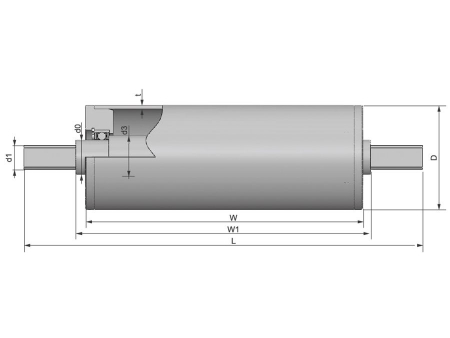

Technical Data
Model Outer Diameter D Thickness t Axis Diameter d Axis Diameter d0 Axis Diameter d1 Roller Width
ALNC-60 60 3 25 20 18 150-1000
ALNC-76 76 3 25 20 18 200-1500
ALNC-89 89 4 25 20 18 200-1500
ALNC-100 100 5 30 25 22 200-1500
ALNC-110 110 5 30 25 22 200-1500
