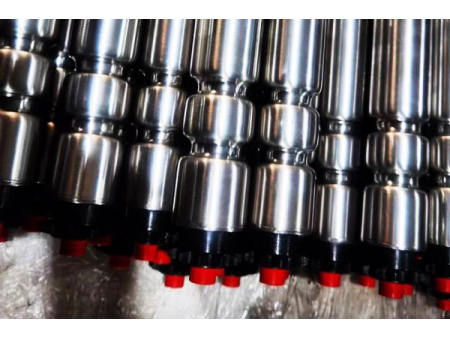

O-Ring Conveyor Roller / Grooved Roller

O-Ring Conveyor Roller / Grooved Roller
O-Ring Conveyor Roller / Grooved Roller
O-Ring Conveyor Roller / Grooved Roller
O-Ring Conveyor Roller / Grooved Roller
Request a Quote
AL2330/2340

Power driven rollers for roller conveyor

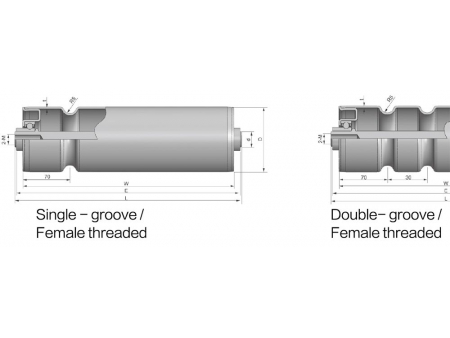

Single/double groove O-ring conveyor rollers operate using an "O" belt drive, providing fast conveying speeds, low operational noise, simple structure, and customizable groove positions.

Features
    • Utilizes O-belt drive, which is anti-static.
    • Smooth object conveyance with minimal noise.
    • Grooves are directly stamped onto the roller tube, offering a simple structure with customizable groove positions.
Technical Data
Tube Diameter (D) Tube Thickness (T) Axis Diameter (d) Tube Material
      Galvanized Steel Stainless Steel
38 1.5/2.0 12
50 1.5/2.0 12/15/S11
60 2.0 12/15/S11
76 3.0 15/20
