ALWH

Carrying rollers for conveyor systems

Application
  • Steel conveyor roller with external bearings is suitable for the drive roller section of conveyor systems.
  • Steel conveyor roller is used for inclined belt conveyors and heavy-duty belt conveyors, capable of carrying heavier loads and having a longer lifespan.
  • The surface of the roller can be grooved or covered with polyurethane, rubber, or neoprene, which increases friction, reduces belt wear, and ensures quieter operation of the equipment.
Features
  • Large load-bearing capacity.
  • Optional tapered ends of the roller tube.
  • Customizable dimension is optional.

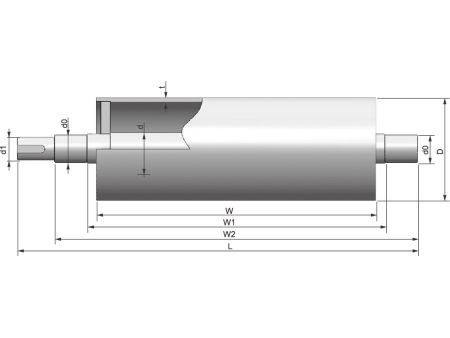

Technical Data
Model Outer Diameter D Thickness t Axis Diameter d Axis Diameter d0 Axis Diameter d1 Roller Width
ALWH-76 76 4 25 20 18 200-1500
ALWH-89 89 4 25 20 18 200-1500
ALWH-100 100 5 30 25 22 200-1500
ALWH-110 110 5 30 25 22 200-1500
ALWH-130 130 5 35 30 28 200-1500
ALWH-142 142 5 35 30 28 200-1500
