DTH Drill Adaptors

Request a Quote

View All: http://max-drilling.com/2-4-dth-drill-adaptors.html

Maxdrill offers DTH drill adaptors with male to male, female to female and male to female thread. Various sizes of adapters are suitable for different applications.

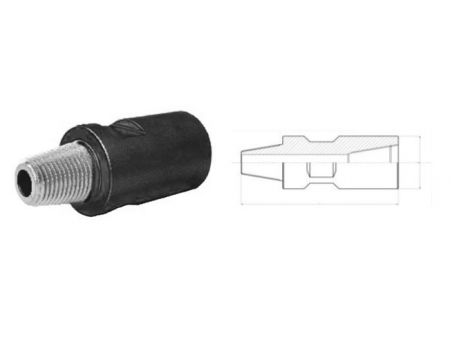

Specifications

Pin Thread	Box Thread	Diameter/ A(mm)	Length/L(mm)	Weight/kg
API 2-3/8REG	API 2-3/8REG	76	200-300	5.5-8.5
API 2-3/8REG	API 2-3/8REG	83	200-500	7-8
API 2-3/8REG	API 2-3/8REG	89	200-500	7.5 -20.5
API 2-7/8REG	API 2-7/8REG	102	200-500	10.5-30
API 3-1/2REG	API 3-1/2REG	114	200-500	12-35
API 3-1/2REG	API 3-1/2REG	127	200-500	14-41
API 3-1/2REG	API 3-1/2REG	133	200-500	16-48
API 4-1/2REG	API 4-1/2REG	140	200-500	18-51
API 5-1/2REG	API 5-1/2REG	152	200-500	20-60
API 6-5/8REG	API 6-5/8REG	178	200-500	26-80
API 7-5/8REG	API 7-5/8REG	194	200-500	30-95
CUB 21#	CUB 21#	89	200-500	7.5 -20.5
CUB 21#	CUB 21#	102	200-500	10.5-30
CUB 24#	CUB 24#	102	200-500	10.5-30
CUB 28#	CUB 28#	114	200-500	12-35
CUB 28#	CUB 28#	127	200-500	14-41
Z 2-1/2	Z 2-1/2	102	200-500	10.5-30
DIBH 3-1/8	DIBH 3-1/8	102	200-500	10.5-30
DIBH 3-1/2	DIBH 3-1/2	114	200-500	12-35

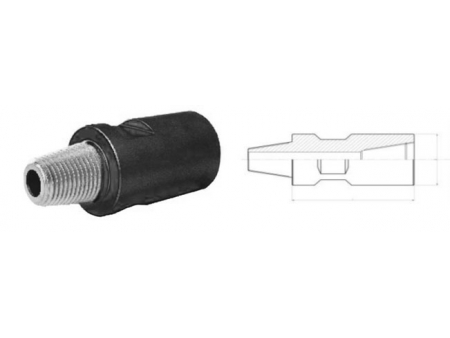

Pin Thread	Pin Thread	Diameter/ A(mm)	Length/L(mm)	Weight/kg
API 2-3/8REG	API 2-7/8REG	102	200-300	10-17
API 2-3/8REG	API 3-1/2REG	114	200-500	12-35
API 2-7/8REG	API 2-3/8REG	102	200-500	10-30
API 2-7/8REG	API 3-1/2REG	114	200-500	12-35
API 2-7/8REG	API 4-1/2REG	140	200-500	18-51
API 3-1/2REG	API 2-3/8REG	114	200-500	12-35
API 3-1/2REG	API 2-7/8REG	114	200-500	12-35
API 3-1/2REG	API 4-1/2REG	140	200-500	18-51
API 4-1/2REG	API 3-1/2REG	140	200-500	18-51
API 4-1/2REG	API 5-1/2REG	168	200-500	25-73
API 5-1/2REG	API 4-1/2REG	168	200-500	25-73
API 5-1/2REG	API 6-5/8REG	178	200-500	26-80
API 6-5/8REG	API 5-1/2REG	178	200-500	26-80
API 6-5/8REG	API 4-1/2REG	178	200-500	26-80
API 6-5/8REG	API 7-5/8REG	194	200-500	30-95

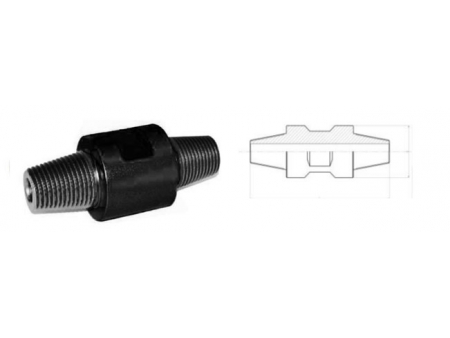

Pin Thread	Pin Thread	Diameter/A(mm)	Length/L(mm)	Weight/kg
API 2-3/8REG	API 2-3/8REG	76	100-500	5.5-14.5
API 2-3/8REG	API 2-7/8REG	102	100-500	10.5-30
API 2-3/8REG	API 3-1/2REG	114	100-500	12-35
API 2-7/8REG	API 2-7/8REG	102	100-500	10.5-30
API 2-7/8REG	API 2-3/8REG	102	100-500	10.5-30
API 2-7/8REG	API 3-1/2REG	114	100-500	12-35
API 2-7/8REG	API 4-1/2REG	114	100-500	12-35
API 3-1/2REG	API 3-1/2REG	114	100-500	12-35
API 3-1/2REG	API 2-3/8REG	114	100-500	12-35
API 3-1/2REG	API 2-7/8REG	140	100-500	18-51
API 3-1/2REG	API 4-1/2REG	140	100-500	18-51
API 4-1/2REG	API 4-1/2REG	140	100-500	18-51
API 4-1/2REG	API 3-1/2REG	140	100-500	18-51
API 4-1/2REG	API 5-1/2REG	168	100-500	25-73
API 5-1/2REG	API 5-1/2REG	168	100-500	25-73
API 5-1/2REG	API 4-1/2REG	168	100-500	25-73
API 5-1/2REG	API 6-5/8REG	168	100-500	25-73
API 6-5/8REG	API 6-5/8REG	178	100-500	26.5-80.5
API 6-5/8REG	API 5-1/2REG	178	100-500	26.5-80.5
API 6-5/8REG	API 4-1/2REG	178	100-500	26.5-80.5
API 6-5/8REG	API 7-5/8REG	194	100-500	30-95
API 7-5/8REG	API 7-5/8REG	194	100-500	30-95

Box Thread	Box Thread	Diameter/A(mm)	Length/L(mm)	Weight/kg
API 2-3/8REG	API 2-3/8REG	76	200-500	5.5-14.5
API 2-3/8REG	API 2-7/8REG	102	200-500	10.5-30
API 2-3/8REG	API 3-1/2REG	114	200-500	12-35
API 2-7/8REG	API 2-7/8REG	102	200-500	10.5-30
API 2-7/8REG	API 3-1/2REG	114	200-500	12-35
API 2-7/8REG	API 4-1/2REG	140	200-500	18-51
API 3-1/2REG	API 3-1/2REG	114	200-500	12-35
API 3-1/2REG	API 4-1/2REG	140	200-500	18-51
API 4-1/2REG	API 4-1/2REG	140	200-500	18-51
API 4-1/2REG	API 2-7/8REG	140	200-500	18-51
API 4-1/2REG	API 5-1/2REG	168	250-1000	25-73
API 5-1/2REG	API 5-1/2REG	168	300-1000	25-73
API 5-1/2REG	API 6-5/8REG	168	300-1000	25-73
API 6-5/8REG	API 6-5/8REG	168	300-1000	25-73
API 6-5/8REG	API 4-1/2REG	168	300-1000	25-73
API 6-5/8REG	API 7-5/8REG	178	300-1000	26.5-80.5
API 7-5/8REG	API 7-5/8REG	178	300-1000	26.5-80.5
