Harmonic Drive Bearing
Request a Quote

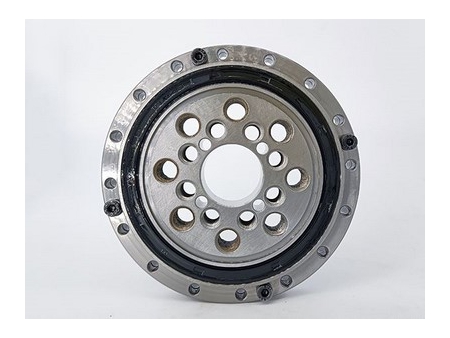

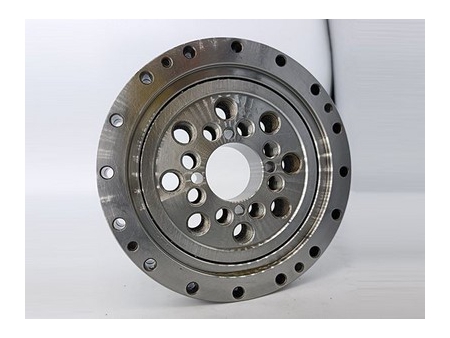

Harmonic drive bearings are crossed cylindrical roller bearings and they can be divided into two types according to the ring construction: with split outer ring and integral inner ring or with integral inner ring and integral outer ring. The cylindrical rollers are arranged vertically at 90° to each other in a V-shaped raceway.
This construction allows the roller bearing to handle radial, axial, and tilting moment loads and improve the stiffness, running accuracy and load carrying capacity. This crossed roller bearing features compact design and mounting holes facilitate mounting and dismounting, which make bearings suitable for various harmonic drives.
CSF/CSG Series
- Outer diameter: 55-210mm
- Rated load: 7-133KN
SHF/SHG Series
- Outer diameter: 70-214mm
- Rated load: 6.1-151.9KN
RV Series
- Outer diameter: 114mm-383mm
- Rated load: 14.6-219.8KN
