Additive Drying Machine
PTC dust-free drying machine for blood collection tubes
(2 sets)
Equipped with clean, dust-free "PTC" heating modules, the additive drying machine can simultaneously dry 100 tubes at a time, ensuring rapid drying of reagents. This drying system is designed to maintain the integrity and performance of blood collection tubes by providing efficient and uniform heat distribution.
- Production capacity: 200 pcs/h
- Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
- Temperature range: room temperature ~ 100℃
- Heating method: PTC dust-free heating
- Power: 10kW/AC380V
- Air consumption: 0.6m³/min
- Overall dimensions (L×W×H): 1800×900×1900mm
(3 sets)

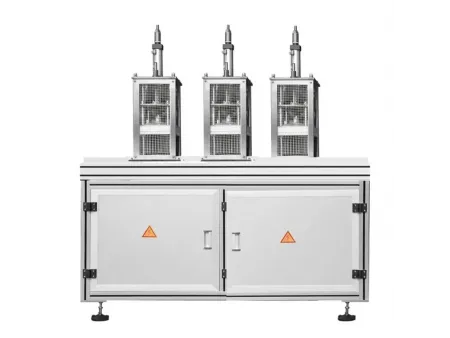

In production environments where cleanliness and efficiency are essential, drying solutions must meet high standards. The PTC dust-free drying machine is equipped with three dust-free "PTC" heating modules, allowing for the simultaneous drying of up to 100 test tubes at a time. This drying system ensures fast and effective drying of reagents, maintaining a clean and controlled environment throughout the process.
- Production capacity: 300 pcs/h
- Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
- Temperature range: room temperature ~ 100℃
- Heating method: PTC dust-free heating
- Power: 10kW/AC380V
- Air consumption: 0.6m³/min
- Overall dimensions (L×W×H): 2200×900×1900mm

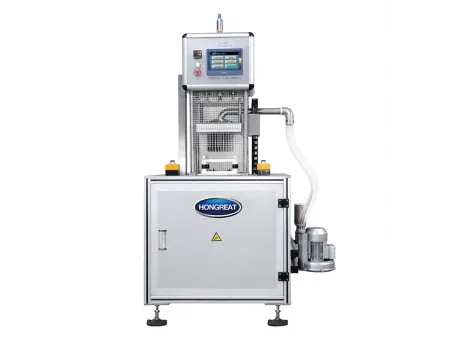

Equipped with a single set of clean, dust-free "PTC" heating module, capable of simultaneously drying 100 tubes in one cycle. This dust-free dryer not only ensures rapid and efficient drying of reagents but also offers precise temperature control for optimal drying results, designed to meet the rigorous standards of medical-grade cleanliness and efficiency.
- Production capacity: 100 pcs/h
- Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
- Temperature range: room temperature ~ 100℃
- Heating method: PTC dust-free heating
- Power: 6kW/AC380V
- Air consumption: 0.6m³/min
- Overall dimensions (L×W×H): 1100×600×1900mm
