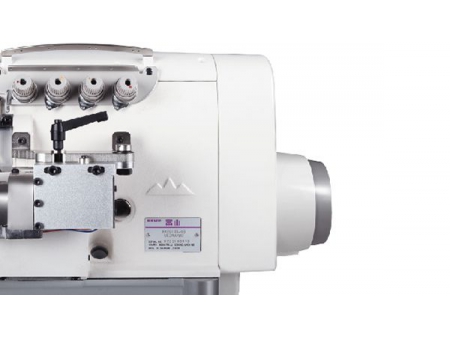

Overlock Sewing Machine, HX6914T 03UTC/AK/MC
Computerized direct drive cylinder bed overlock sewing machine with bottom tape feeding device
We present our computerized direct drive narrow cylinder bed overlock sewing machine featuring high-speed and accurate sewing operations. Equipped with a bottom tape feeding device, the sewing machine ensures stable fabric feeding and precise overlocking, providing superior sewing results.
This sewing machine is not only suitable for shirt, jacket, and dress production but also excels in handling intricate details in sewing processes, offering clothing manufacturers a high-efficiency and high-quality sewing solution.
| Model | HX6914T-03UTC/AK/MC |
| Needle | DCx27 #11 |
| No. of needles | 2 |
| No. of threads | 4 |
| Needle pitch | 2 |
| Stitch width | 4mm |
| Stitch length | 0.7-3.8mm |
| Differential ratio | 0.8-1.8 |
| Presser foot lifting height | 5.5 |
| Light | √ |
| Speed (S.P.M) | 6700 r/min |
| Dimensions | 530x370x555mm |
Improved Work Efficiency With a maximum speed of 7000rpm, the sewing machine enhances work efficiency.
-
-

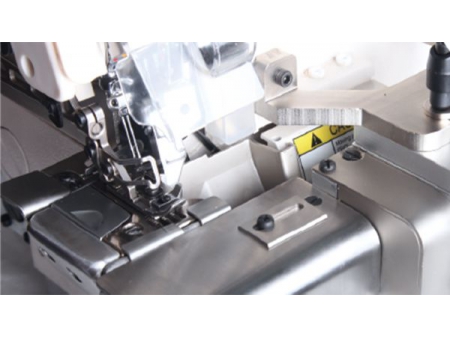

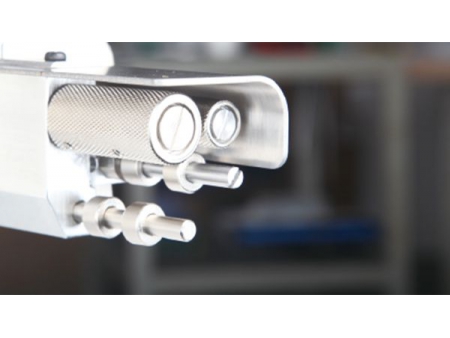

Stable Bottom Tape Feeding The equipped stable bottom tape feeding system achieves tension-free fabric feeding, resulting in high-quality sewing.
-
-
Uniform Elastic Tape Control The computer-controlled tape feeding ensures uniform elasticity, facilitating stable and straight fabric feeding.
-
-
Automatic Thread Cutting The automatic thread cutting feature ensures precise thread control, reducing manual labor costs and enhancing work efficiency.
