Overlock Sewing Machine, HXT6800TA
Computerized high speed direct drive top and bottom feed overlock sewing machine
We present our high-performance overlock sewing machine with intelligent direct drive and top-bottom feed. Available in different specifications, this sewing machine caters to medium-heavy and heavy fabrics, offering a remarkable sewing speed of up to 7000 stitches per minute.
Whether it's shirts, jackets, down jackets, or other clothing productions, this direct drive and top-bottom feed system ensure fast, precise, and reliable stitching, enhancing production efficiency and delivering superior sewing quality for garment manufacturers.
| Model | Needle | No. of needles | No. of threads | Needle pitch | Stitch width | Stitch length | Differential ratio | Presser foot lifting height | Medium | Heavy | Speed (S.P.M) | Dimensions |
| | DCx27#11 | 2 | 4 | 2 | 4mm | 0.6-3.8mm | 0.7-2 | 5.5 | √ | 7000 r/min | 534x430x563mm | |
| | DCx27 #11 | 2 | 4 | 2 | 4mm | 0.6-3.8mm | 0.7-2 | 5.5 | √ | 7000 r/min | 534x430x563mm | |
| | DCx27 #11 | 2 | 4 | 2 | 4mm | 0.6-3.8mm | 0.7-2 | 5.5 | √ | 7000 r/min | 534x430x563mm | |
| | DCx27 #14 | 2 | 4 | 2 | 4mm | 2-7mm | 0.7-2 | 7.5 | √ | 7000 r/min | 534x430x563mm | |
| | DCx27 #14 | 2 | 4 | 3 | 4mm | 2-7mm | 0.7-2 | 7.5 | √ | 7000 r/min | 534x430x563mm | |
| | DCx27 #14 | 2 | 5 | 3 | 5mm | 0.8-3.8mm | 0.7-2 | 5.5 | √ | 7000 r/min | 534x430x563mm | |
| | DCx27 #21 | 3 | 5 | 5 | 6mm | 0.8-5mm | 0.8-1.5 | 7 | √ | 7000 r/min | 534x430x563mm | |
| | DCx27 #11 | 3 | 6 | 3×2 | 4mm | 0.6-3.8mm | 0.7-2 | 5.5 | √ | 7000 r/min | 534x430x563mm |
-
-

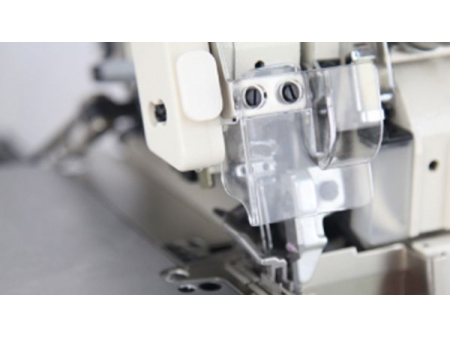

Versatility with Plain Knife Trimmer Expanded scope of usage with the additional plain knife trimmer feature, catering to the sewing demands of different customers, such as varying thread lengths in different sewing techniques.
-
-

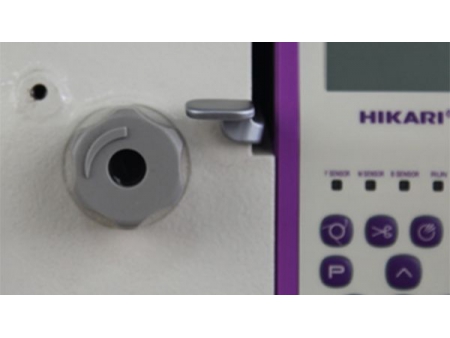

Easy Stitch Adjustment The needle adjustment mechanism allows for effortless thread adjustments, simplifying your sewing process.
-
-
Enhanced Illumination Equipped with LED lights, providing extensive illumination, ensuring a clear and bright working environment.
-
-

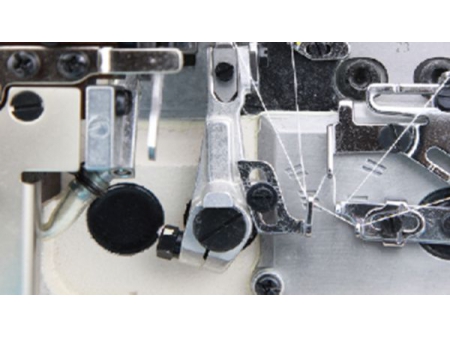

Wide Needle Pitch Accommodate thicker fabrics with a maximum needle pitch of 7.0mm, ideal for sewing children's clothing with cotton filling.
-
-

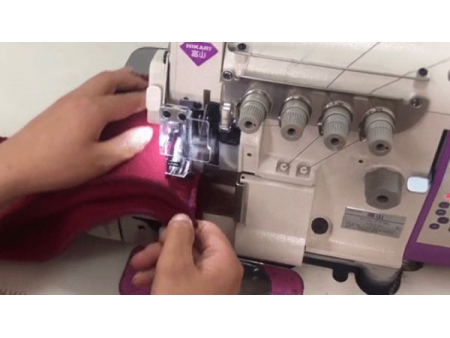

Specialized for Challenging Fabrics Designed to handle thick fabrics, layered fabrics, and materials that tend to shift, making it ideal for sewing garments like padded children's clothing, thick sweaters, jackets, down jackets, thermal underwear, swimwear, and slippery multi-layered fabrics.
-
-

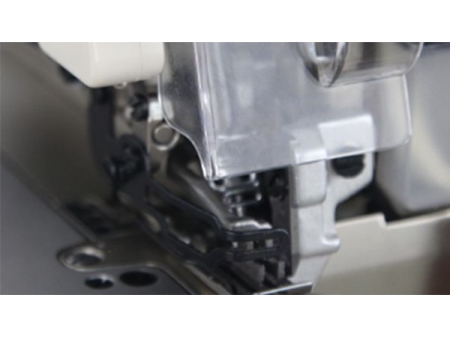

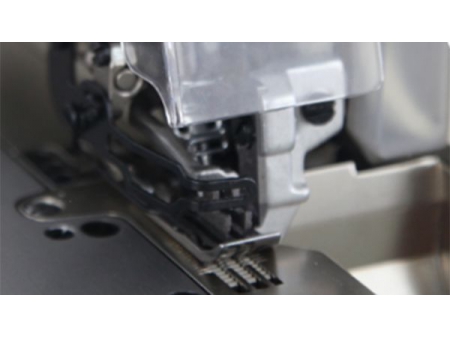

Knob-Style Feed Structure Patented locking structure (Patent No. 2019215530456 - Utility Model) ensures stable stitches and eliminates fabric shifting during the sewing process, especially for slippery fabrics.
-
-

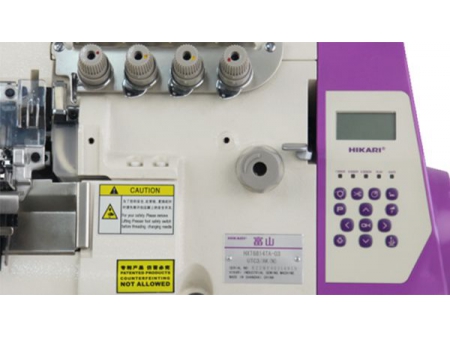

Integrated Design Upgraded with an integrated design, improving both hardware and software performance and sewing quality.
