Ultrasonic Sewing Quilting Machine
Request a Quote
Pneumatic Ultrasonic Quilting Machine
Automatic Ultrasonic Quilting Machine
Manual Ultrasonic Quilting Machine
Description
This quilting machine uses ultrasonic technology to bond layers of synthetic fabrics, non-woven materials, spray-bonded cotton, and artificial leather. This bonding method creates strong, detailed patterns without using threads or needles. By changing the pattern roller, users can produce various decorative designs easily. This ultrasonic machine is perfect for making items like quilts, bedspreads, sofa covers, duvet covers, and clothing fabrics, making it a valuable tool for manufacturers looking to improve their products.
| Model | Power supply | Effective width (customizable) | Working speed | Max. quilting weight (20Khz) | Machine weight | Working area (common) |
| 5kW 380V 3 phase (220V) | 1600mm | 0-10m/min | Fillings 300gsm | 1500kg | 4*4.5m | |
| 5kW 380V 3 phase (220V) | 1800mm | 0-10m/min | Fillings 300gsm | 1600kg | 4.2*4.5m | |
| 5kW 380V 3 phase (220V) | 2000mm | 0-10m/min | Fillings 300gsm | 1800kg | 4.4*4.5m | |
| 6kW 380V 3 phase (220V) | 2300mm | 0-10m/min | Fillings 300gsm | 2000kg | 4.6*4.5m | |
| 6kW 380V 3 phase (220V) | 2400mm | 0-10m/min | Fillings 300gsm | 2200kg | 4.8*4.5m | |
| 7kW 380V 3 phase (220V) | 2600mm | 0-10m/min | Fillings 300gsm | 2400kg | 5*4.5m | |
| 7kW 380V 3 phase (220V) | 2800mm | 0-10m/min | Fillings 300gsm | 2600kg | 5.2*4.5m | |
| 8kW 380V 3 phase (220V) | 3000mm | 0-10m/min | Fillings 300gsm | 2800kg | 5.4*4.5m | |
| 8kW 380V 3 phase (220V) | 3200mm | 0-10m/min | Fillings 300gsm | 3000kg | 5.6*4.5m |
- This machine features the latest ultrasonic control box design that provides strong and stable power. It is suitable for longtime continuous operation.
- Built-in multi-channel ultrasonic protection system to ensure safe and stable operation of the machine.

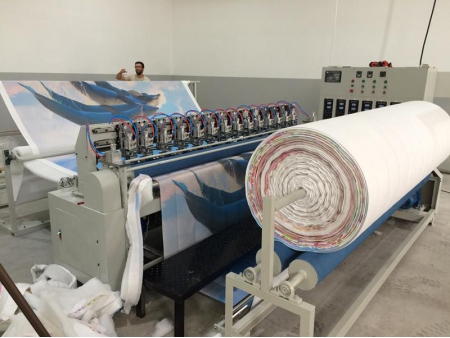

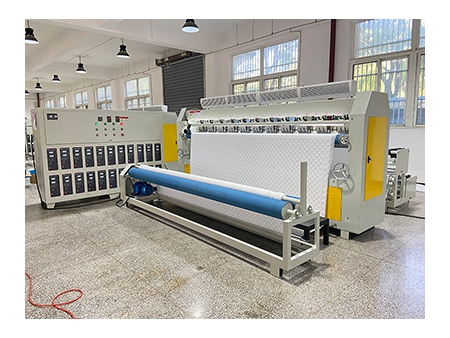

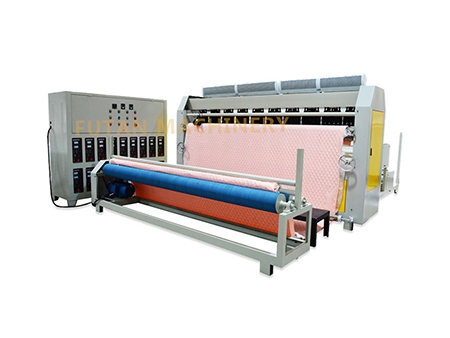

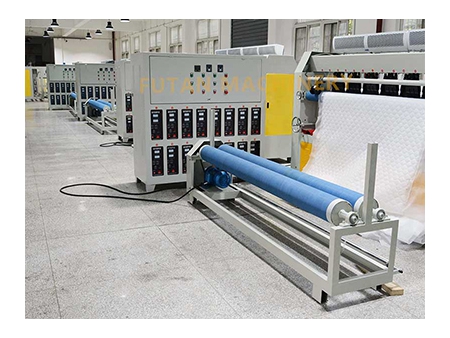

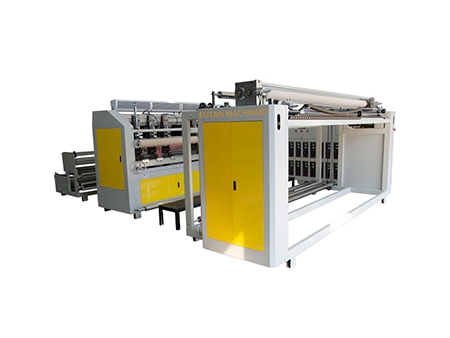

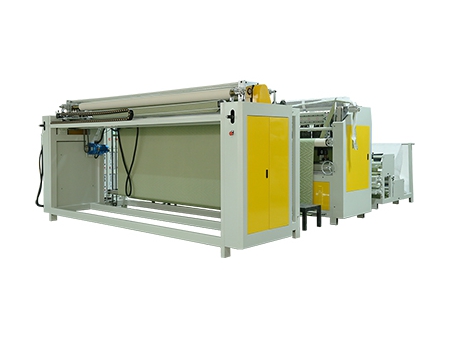

- The whole machine is comprised of an embossing compound mainframe, ultrasonic control cabinet, finished products rewinding machine, and bracket for storing fabrics.
- Efficient ultrasonic welding and quilting without needles or threads; the ultrasonic system supports long hours of continuous operation

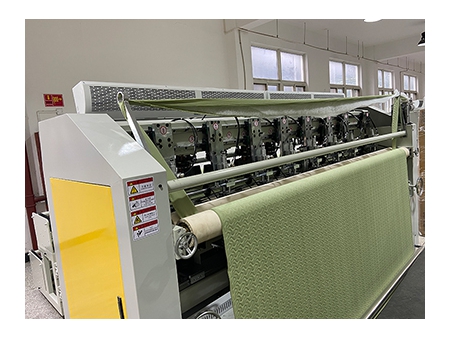

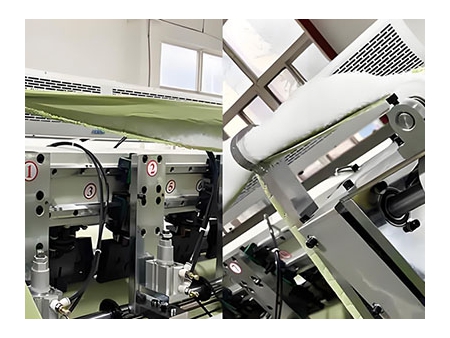

- Effective width options range from 1000 to 3500mm, with choices of straight-line, cross-line, and pneumatic welding head designs

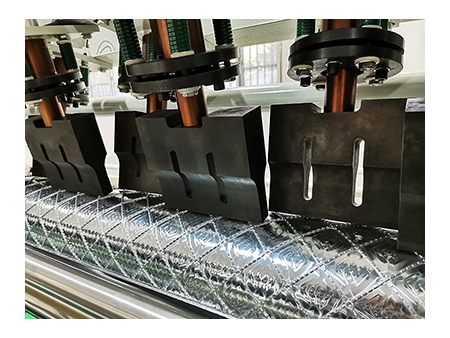

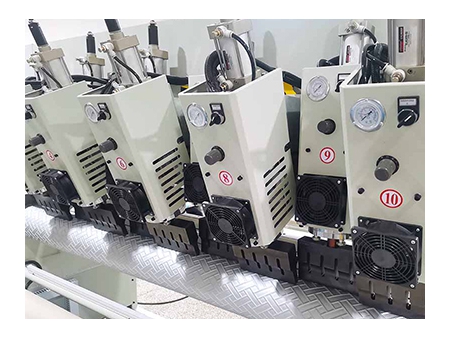

- Durable ultrasonic welding heads reduce failure rates
- Proprietary ultrasonic system that is efficient, stable, and easy to service
- Available ultrasonic frequencies include 20Khz, 18Khz, and 15Khz
- Customizable options for standard and ultrasonic cutting blades, including the number and style of blades

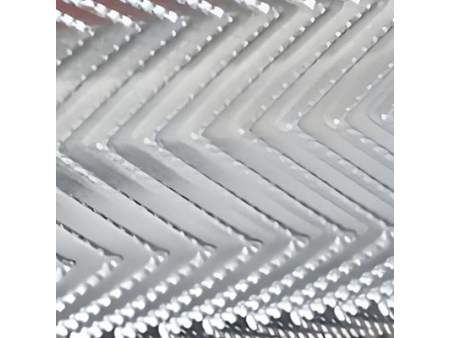

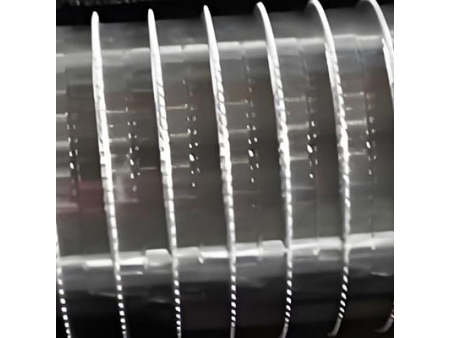

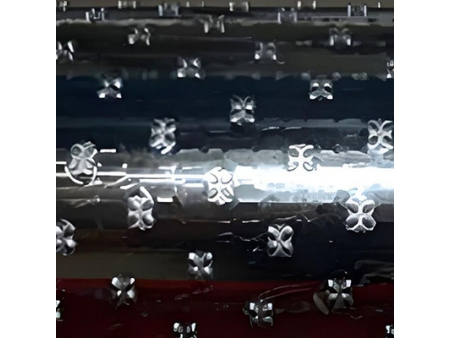

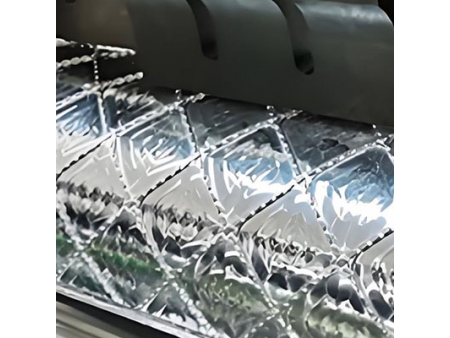

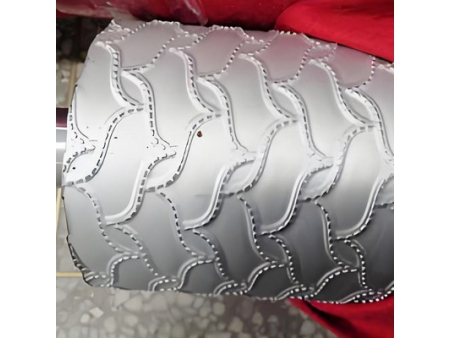

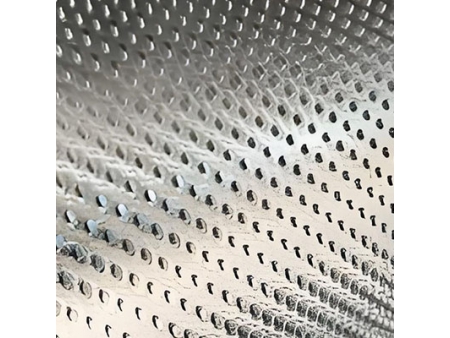

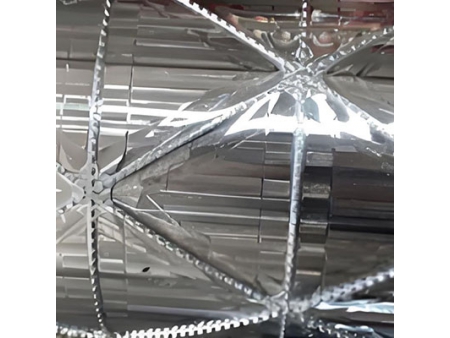

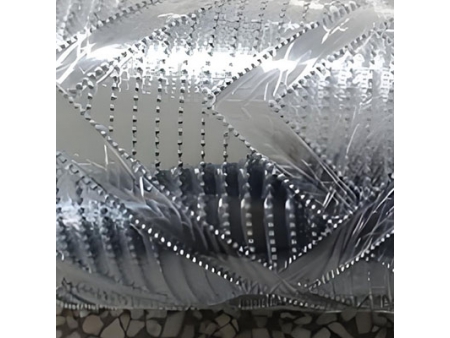

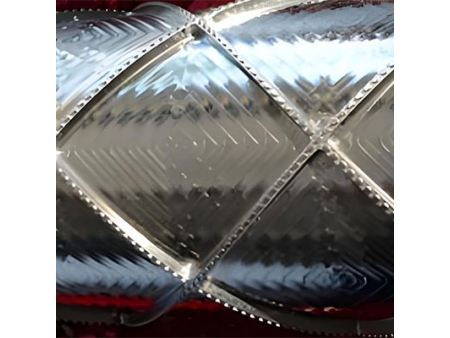

- Custom pattern rollers available, with options for custom designs and in-house engraving
- Customizable features like air-expansion shafts, tension control material racks to assist in producing high-quality products
- User-friendly interface with a human-machine touch control system
