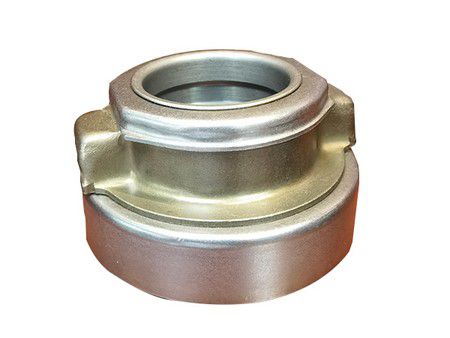

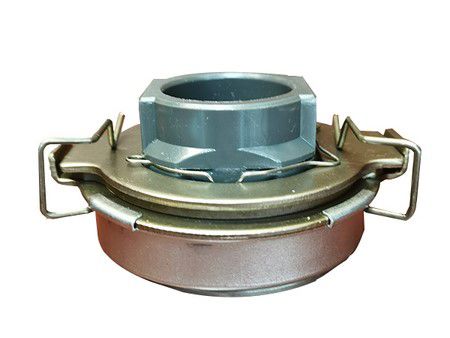

Clutch Release Bearings

Request a Quote

View All: http://bearing-products.com/2-5-clutch-release-bearings.html

Throw-out bearings used in transmission system to ensure reliable vehicle operation

Clutch release bearing is a crucial component of the transmission system, known for its high reliability, precise control, and ability to effectively reduce friction and wear, thus extending the lifespan of equipment.

This bearing is primarily utilized in automotive transmission systems, construction machinery, heavy-duty equipment, and various industrial machinery, for controlling the engagement and disengagement of clutches, ensuring smooth operation and efficient performance of vehicles or equipment.

Specifications

Bearing Designation	Boundary Dimensions (mm)			Weight (kg)
	d	D	B
588909	45	73	17	0.23
588911	52.388	84.5	20.42	0.37
588913	65	108	28.8	0.85
588913K	65	96	19.3	0.4
688808	40	67	14.35	0.16
688808K	40	67	14.35	0.18
688908K	38.1	71.44	17.27	0.23
688910K	52.388	85.73	20.42	0.38
688711	55	91.5	20.3	0.41
688711K1	55	92	23	0.48
688911K	57.15	93.66	20.42	0.43
9688211	55	92	23	0.48
968213K	65	103	22	0.6
