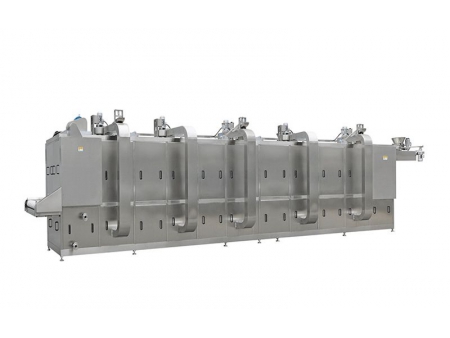

Low Temperature Drying Tunnel

Request a Quote

View All: http://foodmachinerychina.com/2-5-low-temperature-drying-tunnel.html

Low temperature drying tunnels are mainly for products that need to be dried under lower temperatures and long drying times, such as fortified rice, pellets, etc.

We are able to supply customized dryer machines according to your needs.

Five-layer twelve-meter (gas)

Function: Remove moisture
Products: fortified rice, pellet

Features

External air circulation, high thermal efficiency.
Lower heating box.
The insulation plate is easy to clean and install.
Suitable for long-time drying in low temperatures.

Specifications

Total power:0.75kW(circulation fan)×4 0.11kW 1.1kW(drive motor) 2.2kW(air supply fan)=6.21kW
Dimension:10800x2100x2600mm
Drying time:50min-120min
Vibration width:1200mm
Heating temperature:60-70℃
0.7-1.6cm(at the bulk density of 700kg/m³)
Capacity:600kg fortified rice (adding a fluidized bed), 300kg pellet

Five-layer nine-meter (steam)

Function: Remove moisture
Products: fortified rice, pellet

Features
air circulation, thermal insulation panels, easy to clean and install, suitable for long time drying in low temperature.

Specifications

Total power:0.75kW (circulation fan)×3 0.11kW 1.1kW(drive motor) 2.2kW(air supply fan)=5.46kW
Dimension:7800x2100x2600mm
Drying time:35min-90min
Vibration width:1200mm
Heating temperature:60-70℃
0.7-1.6cm(at the bulk density of 700kg/m³)
Capacity:300kgfortified rice

Eight-layer Vibration Pre-dryer

Function: remove moisture
Products: pre-dried pellet and rice

Features

Combined structure, easy to dissemble and deliver
Vibratory conveying, non-sticky, uniform heat, facilitate drying.
Air circulation is efficient and energy-saving.
Independent dehumidifier.

Specifications

Total power:0.55×18 2.2 1.1 2.2 0.18=15.58kW
Dimension:5300×2500×3000mm
Drying time:12min-17min
Vibration width:1300mm
Heating temperature: around 70℃
0.7-1.6cm (at the bulk density of 700kg/m³)
Capacity:500kg
