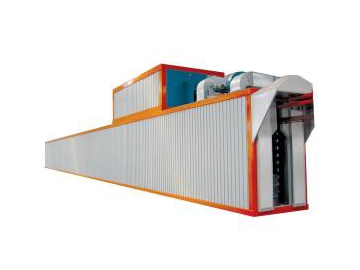

Amorphous Core Drying Tunnel Oven

Amorphous Core Drying Tunnel Oven
Request a Quote

SMIF is a specialist manufacturer of , with a drying tunnel oven as a key component used for heating and curing adhesive on the cores.

Industrial conveyor oven for curing coating on amorphous ribbons

Our company specializes in manufacturing amorphous ribbon core production lines, with drying tunnel ovens being essential equipment used to heat and cure adhesive on the cores. The drying tunnel oven utilizes far-infrared electric heating, primarily relying on far-infrared electric heating tubes for radiant heating during the curing process. Our drying tunnel oven boasts fast heating and concentrated heat distribution. The optimal radiation wavelength is located between 200mm and 250mm from the surface of the product, where the far-infrared electric heating tubes are positioned.

Parameters
Internal Dimensions of Drying Tunnel Oven 710×6000×1200mm (Width×Depth×Height)
Rated Power 24 kW, 380V, Three-Phase Four-Wire System.
Operating Temperature Range Room Temperature to 150℃ (can be pre-set freely within this range).
FAQs
Drying tunnel oven is a continuous oven primarily used in amorphous ribbon core production lines to apply adhesive and uniformly heat-cure assembled amorphous ribbon cores.
Our amorphous ribbon core production lines are mainly used by amorphous ribbon manufacturers, transformer core manufacturers, and power transformer manufacturers.
The amorphous cores produced by our equipment are primarily used in amorphous core transformers, inductors, drivers, motors, reactors, and any devices requiring high-frequency, low-loss performance.

Compared to other soft magnetic materials, amorphous ribbon cores offer a wider range of high-frequency properties and lower core losses, including:

  • High permeability
  • High magnetic density
  • Reduced distribution and core losses
  • Wide range of frequency properties
  • Low coercivity forces
  • Low no-load loss
  • Low temperature rise
  • Excellent resistance to corrosion
  • High harmonic wave tolerances

Amorphous materials find applications in various industries, including:

  • Electronics: Voltage transformers, inductors, drivers, and more.
  • Aerospace: High-temperature components on spacecraft, cabin doors, etc.
  • Automotive: Explosion-proof films, etc.
  • Medical: Excellent materials for manufacturing artificial joints and bone marrow aspiration needles.
Our amorphous core production line is highly popular due to its advanced performance and cost-effectiveness, which is widely used not only in domestic applications but also in countries like India, United States, Vietnam, Argentina, Philippines, Bangladesh, and receives positive feedback from buyers.
We have been developing and manufacturing core cut-to-length machines for transformer production for nearly 15 years.
