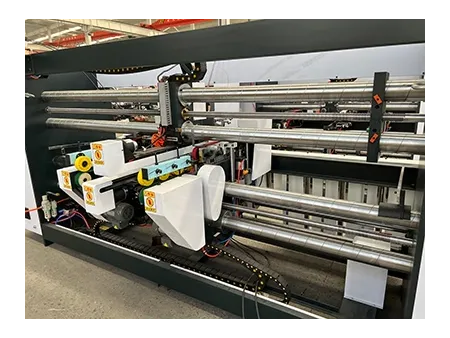

Semi-Automatic Box Stitching Machine (Double Head)
Request a Quote
Corrugated cardboard stitcher for stapling two-piece corrugated boxes
The double-head semi-automatic box stitching machine is an efficient solution designed specifically for processing two-piece corrugated cartons. It focuses on meeting the core requirements of carton joining and stitching, while maintaining operational flexibility and stable performance. The machine is suitable for small to medium production volumes and supports a wide range of two-piece carton specifications.
Structure
Sheet Feeding Section
Wire Feeding Section
Control Panel
Stitching Head Output Section
Electrical Cabinet
Electrical Components
Stitching Head Feeding Section
Motor
Belt Conveyor
Output Drive Section
Technical Specifications
| Model | | | |
| Max. paper size (A B)x2, mm | 3200 | 4000 | 5000 |
| Min. paper size (A B)x2, mm | 980 | 980 | 980 |
| Max. carton length A, mm | 1480 | 1880 | 2380 |
| Min. carton length A, mm | 370 | 370 | 370 |
| Max. carton width B, mm | 800 | 1000 | 1250 |
| Min. carton width B, mm | 120 | 120 | 120 |
| Max. paper height (C D C), mm | 2900 | 2900 | 2900 |
| Min. paper height (C D C), mm | 400 | 400 | 400 |
| Max. rock cover C, mm | 450 (standard) / 600 (optional) | 450 (standard) / 600 (optional) | 450 (standard) / 600 (optional) |
| Min. rock cover C, mm | 80 (standard) / 20 (optional) | 80 (standard) / 20 (optional) | 80 (standard) / 20 (optional) |
| Max. height D, mm | 2000 | 2000 | 2000 |
| Min. height D, mm | 200 | 200 | 200 |
| Max. tongue width, mm | 40 | 40 | 40 |
| Stitch pitch, mm | 30-120 | 30-120 | 30-120 |
| Number of stitches | 2-99 | 2-99 | 2-99 |
| Stitching speed, nails/min | 600 | 600 | 600 |
| Machine weight, T | 3 | 3.2 | 3.5 |
