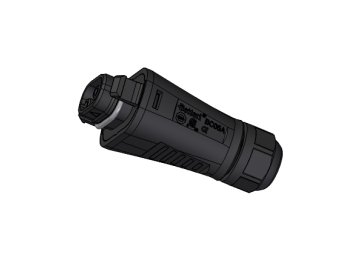

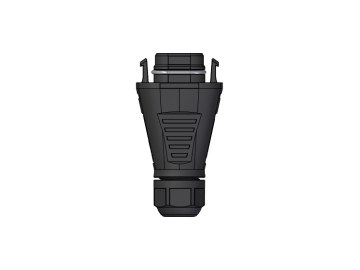

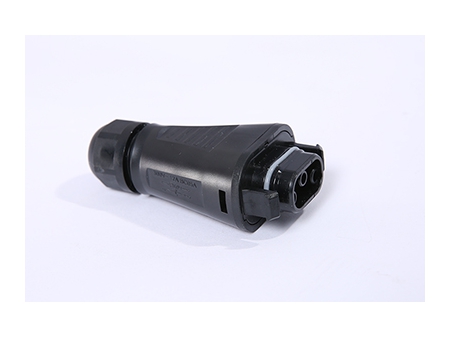

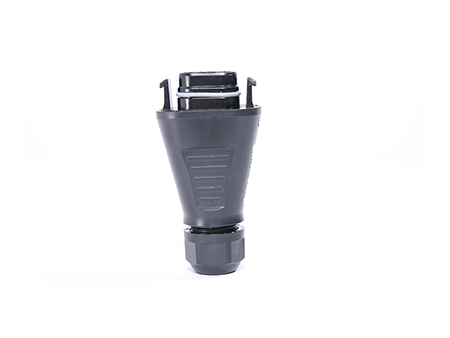

BC05A T-Branch Connector-M
Request a Quote

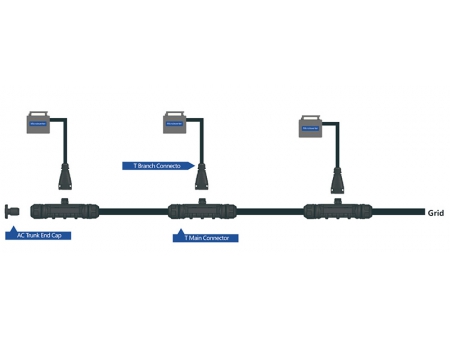

This versatile and reliable T-branch connector is designed for use with single micro inverters and seamlessly interconnects with branch connectors. Ideal for simple micro inverter systems commonly found in residential settings, it offers an efficient and user-friendly way to enhance your solar energy setup. Made with high-quality materials, this connector ensures robust performance and long-lasting durability. Its design allows for quick and secure connections, reducing installation time and ensuring stable power transfer.
Technical Parameters
| Rated Current | 12A |
| Rated Voltage | 300V |
| Protection Class | IP68 |
| Enclosure Flame Class | UL94-V0 |
| Applicable Environment Temperature | -40℃~ 85℃ |
| Rated Impulse Withstand Voltage | 4000V |
| Applicable Cable | 16/18AWG 1.5/1.0mm² |
| Insertion And Withdraw Force | Insertion Force≈60N Withdraw Force≥150N |
| Pollution Degree | II(mated) |
| Mechanical Insertion and Withdrawal Cycles | ≥400times |
