BC05C T-Shape Solar Connector Manufacturer

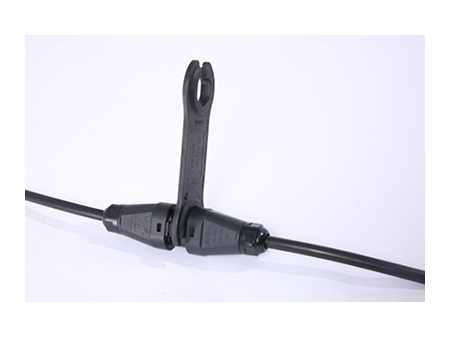

BC05C T-Shape Solar Connector

Request a Quote

View All: http://thesolarconnector.com/2-7-bc05c-circular-connector.html

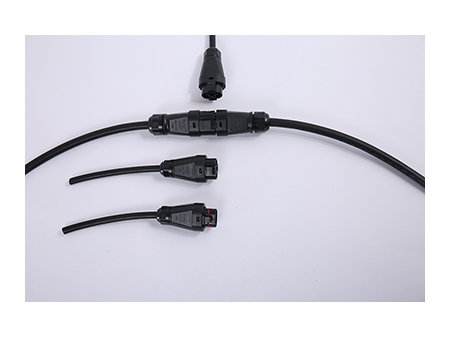

The BC05C is a circular connector developed by Betteri to meet the needs of the photovoltaic micro inverter market. It works well with our earlier and is suitable for higher power inverters. This solar connector features a quick-connect design that removes the need for manual wiring on-site, offering more flexibility, ease of use, and safety. This makes it easier to set up and combine micro inverters, ideal for both home and commercial solar installations.

Main cable specification: 300V, 40A(10AWG);
Branch cable specification: 300V, 12A(16AWG);
Color: Black
Certificates:

Technical Parameters

	Pin Number	2P PE
General	Main Cable Rated Current	40A (10AWG/6mm² copper cable)
	Main Cable Rated Voltage	300V
	Branch Cable Rated Current	12A (16AWG/1.5mm² copper cable)
	Branch Cable Rated Voltage	300V
	Contact Resistance	≤5mΩ
	Power Frequency Withstand Voltage	1500V AC
	Over-Voltage Category	Ⅲ
	Closure Pollution Degree	2(mated)
	Protection Class	IP68(1m, 1h)
	Withdraw Force	20~50N
	Flammability Rating	UL94-V0
	Rated Temperature	-40℃~ 85℃
Standards	PPP 59015A:2013	TUV test standard
Standards	ANSI/UL6703-2017	CSA test standard
Connection Data	Applicable Cable Specification	Main Cable: 14/12/10AWG; branch cable: 16/18AWG
	Applicable Cable Outer Diameter	Main Cable: 10~13mm; Branch Cable: 7~9.5mm
	Locking System	Snap
Connection Type	Main Cable Connection	Crimping
Connection Type	Branch Cable Connection	Crimping
Material	Housing Material	PPE
	Terminal Material	Copper zinc alloy
	Terminal Surface Treatment	Main Cable: Tin-Plated; branch cable: gold plated
	Sealing Material	Silicon Rubber
Dimensions	Length	230mm
	Width	40mm
	Height	134mm

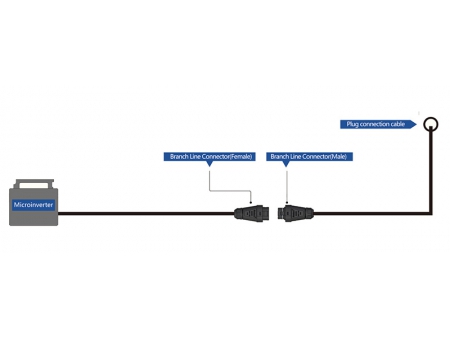

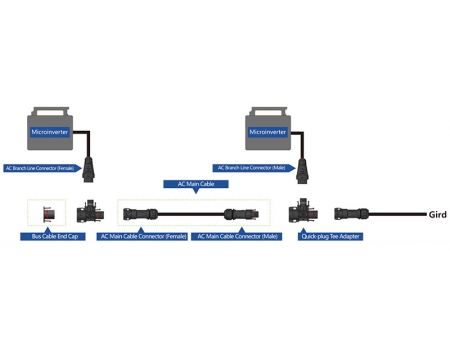

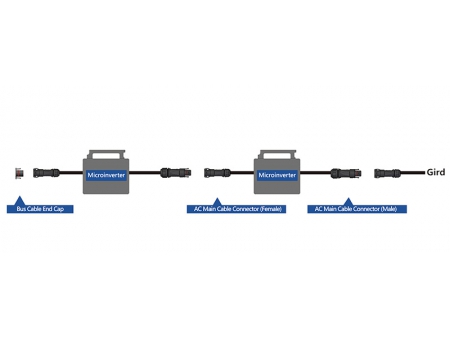

Wiring Methods
