LQ-DL-F

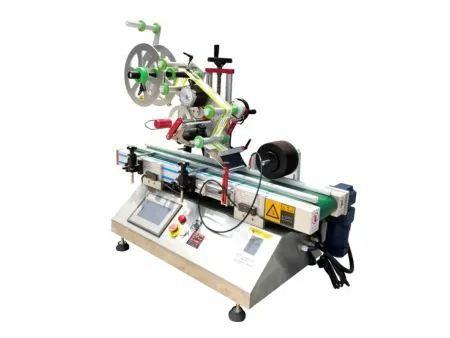

Desktop labeling machine for applying labels on flat surfaces

The flat label applicator is a desktop labeling solution designed for precise application of labels on various flat surfaces. Ideal for sectors ranging from food and electronics to pharmaceuticals, this machine combines mobility with efficiency, ensuring high productivity even in smaller production runs.

Applicable labels: paper labels, transparent labels, metal labels etc.

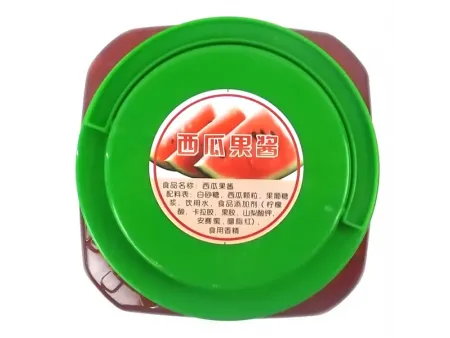

Application examples: carton labeling, SD card labeling, electronic accessories labeling, carton labeling, flat bottle labeling, ice cream box labeling, etc.

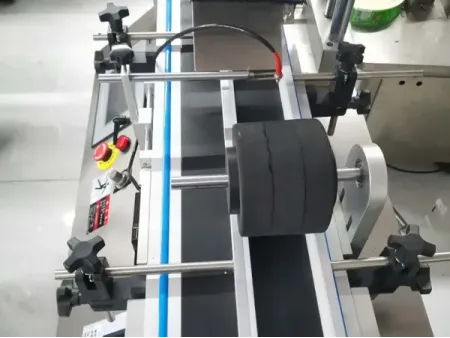

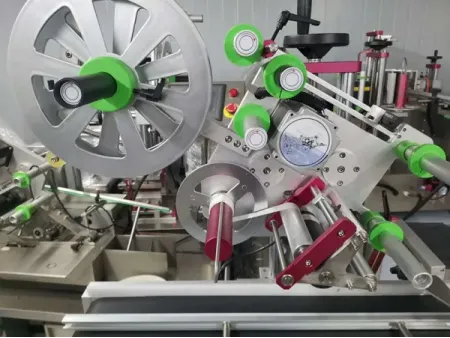

Main Components

Specifications

Model	LQ-DL-F
Power Supply	220V, 50Hz, 400W, 1Ph
Labeling Speed	20- 60 pcs/min
Labeling Accuracy	±1mm
Product Size	Width: 25-150mm Length: 20-250mm
Label Size	Width: 20-150mm Length: 10-250mm
Inner Diameter of Label Roll	76mm
Outer Diameter of Label Roll	300mm
Machine Size (L×W×H)	1200mm×600mm×750mm
Machine Weight	85kg

Features

The flat label applicator adjusts easily for different product sizes, ensuring precise labeling without the need for manual reconfiguration. It automatically detects the label size and adjusts the labeling parameters accordingly, simplifying the process for users managing multiple product types.
This label applicator is recognized for its exceptional precision and stability in labeling, ensuring that every label is placed accurately and consistently, enhancing product presentation and consumer trust.
Made from stainless steel, the flat label applicator is not only durable but also has a compact and appealing design. It is lightweight, making it easy to integrate into various workspaces without sacrificing quality or functionality.

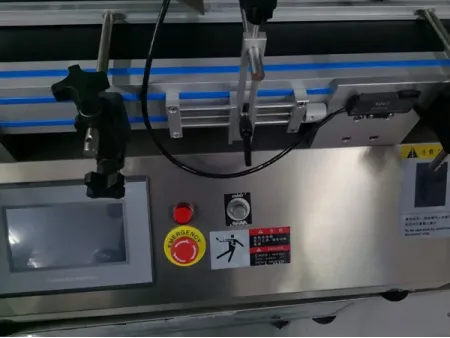

Equipped with an advanced photoelectric tracking system, the applicator includes an automatic detection function to minimize label waste and prevent mislabeling. The 7-inch touch screen allows for straightforward debugging and operation adjustments.
This machine can be quickly and easily adjusted to accommodate different sizes of products and labels, enhancing flexibility and efficiency in production lines.
Its light and compact design make the flat label applicator easy to move and set up, providing flexibility in where and how it can be used, from tabletops to integrated production lines.
With features like the Taiwanese optical fiber amplifier, flat label applicator digital adjustment is highly precise, ensuring that labels are applied correctly every time.
The flat label applicator is produced in accordance with CE certification standards, ensuring that it meets high safety and operational benchmarks.
