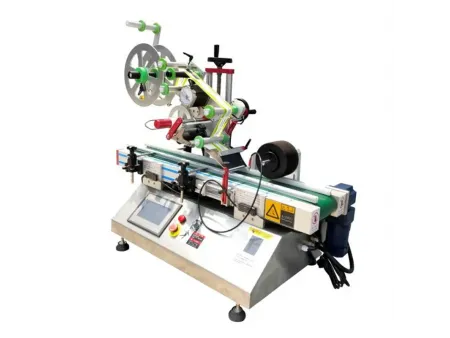

Flat Surface Label Applicator
Request a Quote
Application
Flat surface label applicator is mainly applicable to labeling the carton and packages, and these cartons are used for medical & pharmaceutical packaging, food product, electronics industry and hardware industry. Our label applicator is particularly useful for labeling PIATS, anti-counterfeit label and logistics information on the folding cartons.
| Model | ZHTBP02 |
| Driving mode | Step motor drived Right/left 20M/30M/50M |
| Operating direction | |
| Max linear speed | |
| Labeling speed | 50-200 |
| Width of the label | 10-60mm |
| Labeling errors | ±1mm |
| Max outer diameter of label roll | Max.300mmφ |
| Inner diameter of label roll | Stander:75mmφ(3″) |
| Overall dimension | 2000×600×1400mm |
| Weight | 150kg (standard) |
| Electrical requirements | AC 110V or 220V (signal phase) ×0.6KW |
| Feeding device | Manual/Automatic |
| Collecting device | Colleting box/special collecting device |
- This flat surface label applicator is suitable for labeling adhesive stickers, and can be paired with beverage filling equipment and packaging equipment in order to form a flat container packaging line.
- Our machine features an automatic fault alarm function for when there is no label, or the belt does not perform as expected.
- The label applicator is available in a variety of models, including S, M, L, XL and high speed types. The labeling speed is about 100~500pcs/min.
- A number of auxiliary devices can be connected to the applicator, including a thermal printer, bar code printer, feeding rotary wheel and conveyor belt.
