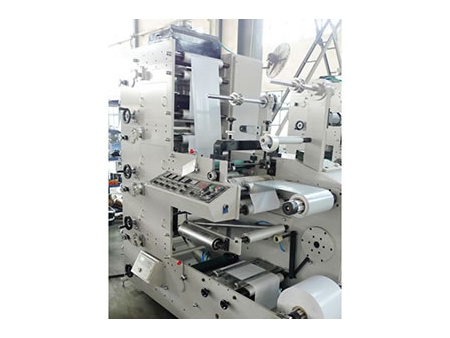

Flexo Printing Machine, ZBS-320G (3/4/5/6 Colors)
Request a Quote
- Printing speed 60m/min
- Printing color 3-6 colors
- Max. width of paper 320mm
- Max .printing width 310mm
Features
- This ZBS-320G flexo printing machine gets each printing unit mounted with printing plate that can be adjusted within 360 degree.
- It uses the ceramic anilox cylinder for ink transfer.
- There are totally three rotary die-cutting stations, namely the first and second stations applicable for double side die cutting and the third die-cutting station for sheeting or slitting printed materials.
- In the standard configuration of the flexo printing machine, the web-guiding system under the control of computer is installed in the front of printing unit, keeping the material in the right position.
- Users can select the optional conveyer system, which can work with the third die cutting station to deliver the printed products orderly
- The automatic magnetic powder tension controller is adopted to control the unwinding and rewinding units. Moreover, there is a double rewinding unit for selection as required.
- Optional static image monitoring device is capable of inspecting the image quality at high speed printing.
- The ink rollers can be separated from the printing roller automatically when the machine stops. Yet they can keep rotating at low speed to prevent the ink from drying.
- Our product utilizes the imported inverter and advanced motor with continuously variable frequency speed controller.
- The flexo printing machine is easy to operate. It can finish material feeding, printing, varnishing, drying, laminating, die cutting, rewinding and sheeting at one stroke.
Technical Specifications
| Model | ZBS-320G |
| Printing speed | 60m/min |
| Printing color | 1-6 colors |
| Max. web width | 320mm |
| Max .printing width | 310mm |
| Max. unwinding/rewinding diameter | 650mm |
| Printing length | 177.8-355.6mm 206.3-460.3mm (Optional) 238.1-539.25mm (Optional) |
| Thickness of flexo plate | 1.7mm or 1.14mm |
| Precision of chromatography | ±0.1mm |
| Dimensions | 2600x1100x3050mm (6 colors) |
| Machine weight | About 2450kg |
Options
- Sheeter conveyer
- UV dryer
- Separate unwinder shelf (diameter up to 900mm)
- Corona treater
- Cold stamping unit
- Video inspecting system
- Safe cover for printing unit
- Slitting unit
Details
- Web guiding system
- Three die cutting stations
- Separate unwinder shelf with diameter of 900mm
- Die cutting roller
- Sheeter and conveyer belt
- Slitter unit
