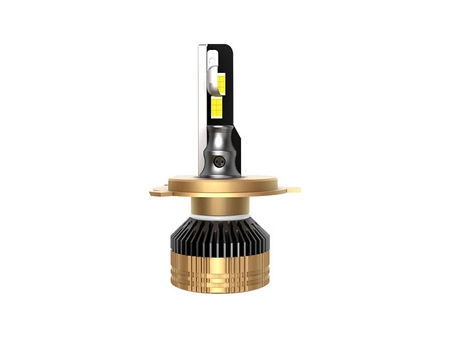

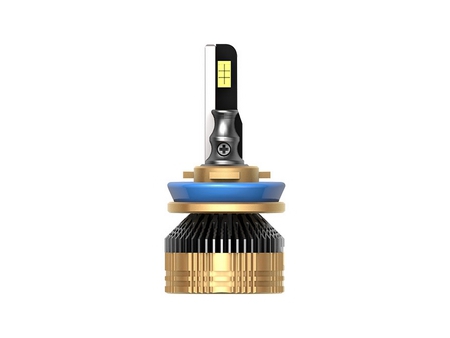

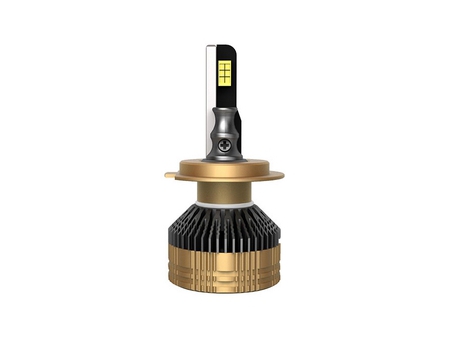

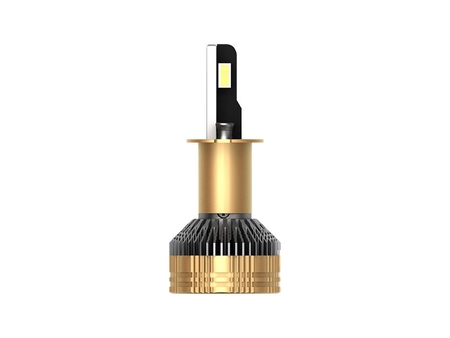

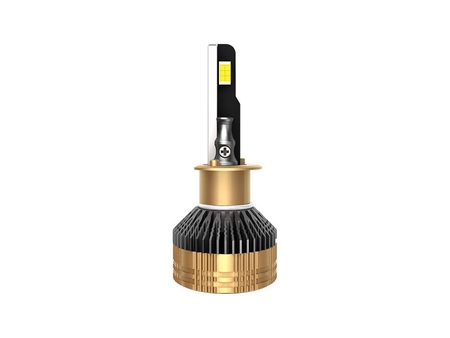

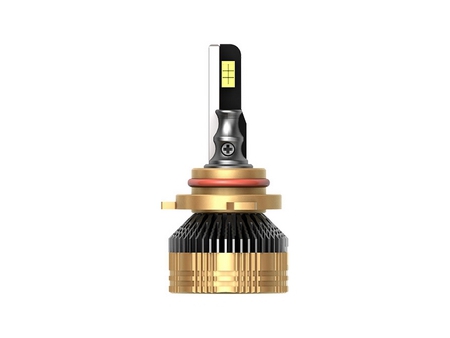

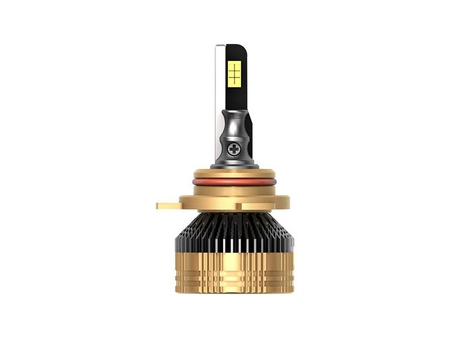

N9S Series LED Headlight Bulb

N9S Series LED Headlight Bulb
N9S Series LED Headlight Bulb
N9S Series LED Headlight Bulb
N9S Series LED Headlight Bulb
N9S Series LED Headlight Bulb
N9S Series LED Headlight Bulb
N9S Series LED Headlight Bulb
N9S Series LED Headlight Bulb
Request a Quote
Features
  • The heat sink measures 32mm in diameter and 30.5mm in height, with a power output of 40W, ensuring optimal cooling.
  • The bulb uses 6*45 3570 LED chips, a single superconducting heat pipe for efficient heat conduction, and S-shaped cooling fins made from AL6063 material (European standard) to ensure excellent heat dissipation.
  • Double-sided 1.5mm copper base plates are perfectly welded to the superconducting heat pipe, improving heat transfer. The built-in driver and smart temperature control system provide better protection for the LED chips.
  • The patented design combines a sleek, compact appearance with powerful performance. It also includes EMC and decoding functions for advanced compatibility.
Specification
Series N9S
Model N9S H1 N9S H3 N9S H4 N9S H7 N9S H11 N9S 9005 N9S 9006 N9S 9012
Voltage (V) DC9-100
Power (W) 40
Luminous Flux (lm) 3200
Color temperature (K) 6500
Driver Built-in driver
Fan Yes
