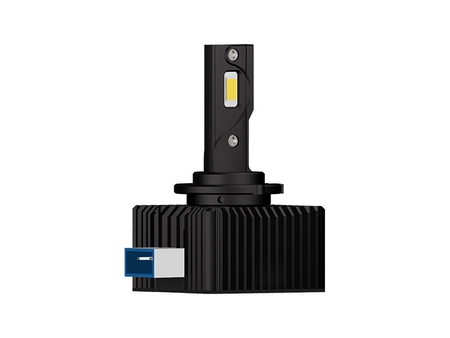

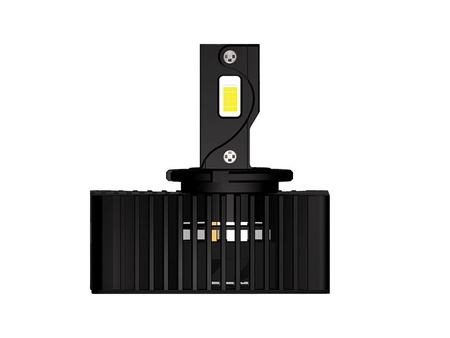

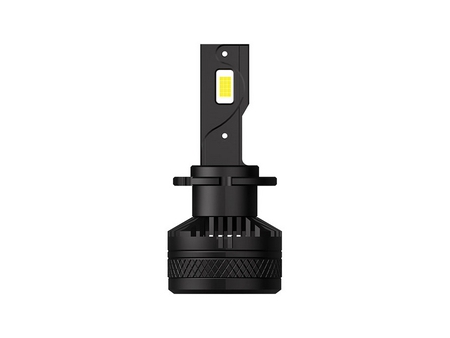

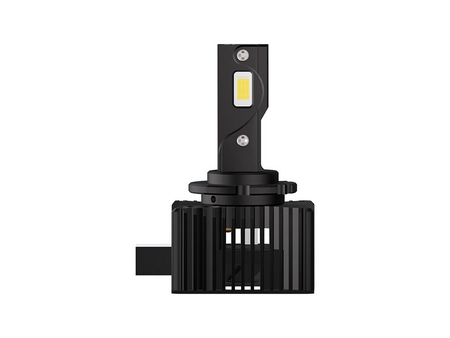

D Series LED Headlight Bulb

D Series LED Headlight Bulb
D Series LED Headlight Bulb
D Series LED Headlight Bulb
D Series LED Headlight Bulb
D Series LED Headlight Bulb
Request a Quote
Features

D1S/D3S/D5S/D8S

  • This LED bulb matches the size of original xenon bulbs, with a power output of 40W for easy replacement.
  • Equipped with 15*45 millimeter 3570 LED chips, the bulb uses a superconducting heat pipe and S-shaped cooling fins made from AL6063 material (European standard) for better heat dissipation.
  • The 1.5mm double-sided copper base plates are perfectly welded to the heat pipe, ensuring better heat transfer. The built-in driver enhances overall performance.
  • Compact and Powerful Design: The patented design combines a sleek, compact look with powerful output, offering EMC and decoding functions for improved compatibility and protection.

D2S/D4S

  • The heat sink has a diameter of 35mm and a height of 36mm, with a power output of 45W for enhanced cooling.
  • Featuring 6*55 millimeter 3570 LED chips, this bulb uses a superconducting heat pipe and S-shaped cooling fins made from AL6063 material (European standard) to ensure better heat dissipation.
  • The 1.5mm double-sided copper base plates are perfectly welded to the heat pipe for superior heat transfer. The built-in driver and smart temperature control system ensure the LED chips are well-protected.
  • This patented design offers a small but powerful solution with EMC and decoding functions for vehicle compatibility and performance protection.
Specification
Series D
Model D1S/R D5S D2S/R D3S/R D4S/R D8S/R
Voltage (V) AC85 13.2 AC45
Power (W) 50 26 35
Luminous Flux (lm) 3800 2800 3800
Color temperature (K) 6000 6000 6000
Driver Built-in driver Built-in driver Built-in driver
Fan Yes Yes Yes
