Description
Using the latest patented technology, (patent number: ZL201320050551) and full compliance with ECE, SAE, and GB standards, the HL90 series head lamp has a significant advantage in the LED industry. With an extremely low (18W) power consumption, the LED headlamp has a beautiful appearance and reaches international advanced levels for energy efficiency. It is an ideal choice for an energy efficient automotive industry.

Product selection:
  • BI-HL90
  • HL90
  • HL90H
BI-HL90

Specification

  • Function: combination of low beam, high beam, front direction indicator, front position light, daytime running light
  • Operating voltage: 10~33VDC
  • Operating temperature: -40~80°C
  • Photometric performance: comply with ECE R112/GB25991, SAE J1383/FMVSS108
  • EMC: ECE R10 &CIS PR25
  • IP67

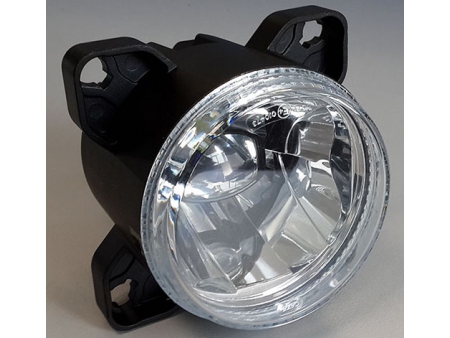

HL90

Specification

  • Function:low beam/high beam
  • Operating Voltage: 10~33VDC
  • Operating temperature:-40~80℃
  • Light Source:LED OSRAM
  • Power:18W
  • Photometric performance: comply with ECE R112/GB14599 requirements
  • Passed ECE R10.04 test
  • Outer lens: Headlamps special PC material, anti-UV, hardened, scratch-resistant.
  • Precision die-cast aluminum housing
  • IP67
  • E-mark approved

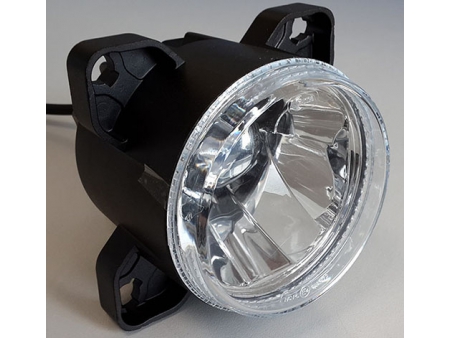

HL90H

Specification

  • Function:low beam/high beam
  • Operating Voltage: 10~33VDC
  • Operating temperature:-40~80℃
  • Light Source:LED OSRAM
  • Power:18W
  • Photometric performance: comply with ECE R112/GB14599 requirements
  • Passed ECE R10.04 test
  • Outer lens: Headlamps special PC material, anti-UV, hardened, scratch-resistant.
  • Precision die-cast aluminum housing
  • IP67
  • E-mark approved
Application results show:
