Gorelocker
- DCP-1000
- HGL-1250
Through our years of development, now we at Zhenhuan have the capacity of designing and producing the roll forming machine based on customer's requirements, whether it is stud/track drywall profile roll forming machine, gutter roll forming machine, octangular tube roll forming machine, slide rail guide rail roll forming machine, T-bar roll forming machine, cable tray roll forming machine, lipped channel roll forming machine, or PVC reinforcement profile roll forming machine etc. Give us your profile, we will give you the machine.

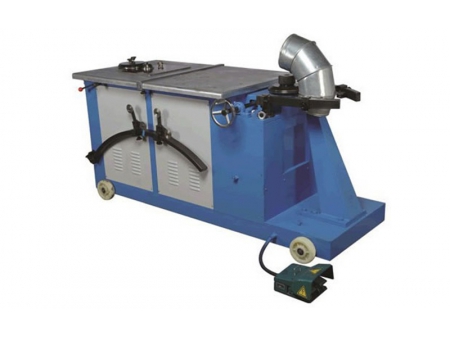

This Gorelocker (also called as elbow making machine) is designed for producing round elbows in ventilation & air conditioning system.
- Max. material thickness1.2mm
- Suitable materialGalvanized steel
- Diameter range of elbow100-1000mm
- Rotating speed7 rpm
- Main motor power1.5kW x 2
- Dimension1400 x 800 x 900mm
- WeightAbout 750kg
- Voltage380V, 3P, 50Hz
The HGL-1250 Hydraulic Gorelocker is specially offered for the production of round elbows for ventilation and air conditioning system. Unlike the product of DCP-1000 series, this product is driven by hydraulic system, enabling stable operation, outstanding forming and locking capacity, and less noise.
- Diameter range125-1250mm
- Width of stripStandard 137mm
- Sheet thickness (Stainless steel)0.4-0.8mm
- Sheet thickness (Galvanized steel)0.4-1.2mm
- Sheet thickness (Aluminum)0.4-1.2mm
- Max. forming speed120m/min
- Hydraulic oil55L
- Consumption of compressed air75L/hour, 6bar
- Motor power4kW 120w cooling fan
- Weight750kg
- Dimension (L x W x H)2650 x 700 x 950mm
Zhenhuan supplies high quality roll forming machine, spiral duct forming machine, plasma cutting machine and welding machine etc.
