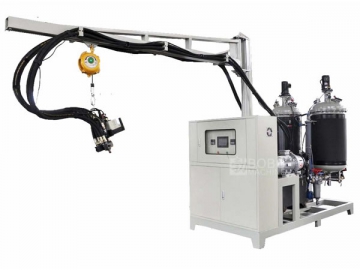

The Low Pressure Polyurethane Foam Injection Machine is most ideal for resilient foam product, integral skin foam product, high density foam product, and other similar products. The default control system is based on the PLC interface, but a time relay control interface is also available as an option. Equipped with a secondary mixing device, the injection machine guarantees even element mixing. BOBO can supply raw materials including Poly and ISO with the purchase of each machine. This unit comes with a one year parts warrantee. Customizable exterior paint, flow capacity, tank storage capacity, and OEM service are available upon client request.

Low pressure polyurethane foam injection machine is widely used for continuous foam injection, and different kinds of foam products making, like pillows, mattress, shoes, decorative foams, float, seats and sandwich panel, etc.

This injection moulding machine is controlled by PLC, and features of high accuracy, simple operation, and convenient maintenance. It can be cleaned itself automatically, which saves a lot of time after the production is done.

Main Technical Data

No. Item Data
1 Rated power 30 kW
2 Temperature control power 2*9 kW
3 Arm 2.3 meters long
4 Output flux 50g /s-100kg/s (optional)
5 Tank capacity 30L , 50L, 250L (optional)
6 Control system PLC programmable
7 Heating type Automatic
8 Cleaning type Automatic
9 ISO measuring pump JLB-28
10 Mixing system rotation speed 2800-5000 r/min
11 Motor power 380V, 50HZ, 3 phase, can be customized
12 Arm type Mechanical or pneumatic
13 Dimension 4100x1250x2300mm (arm included)
14 Weight 1350kg

As a specialized Low Pressure Polyurethane Foam Injection Machine manufacturer based in China, BOBO Machine also supplies circular shear, bolt and nut machine, punch press machine, and more.
