Low Pressure Die Casting Machine Manufacturer

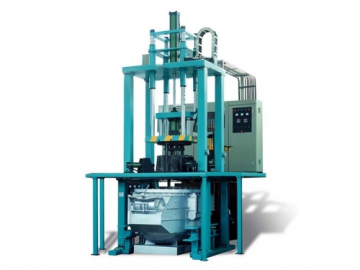

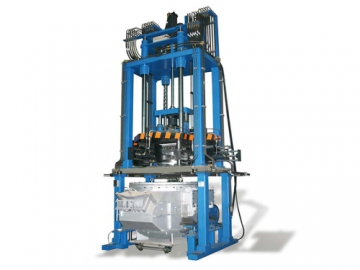

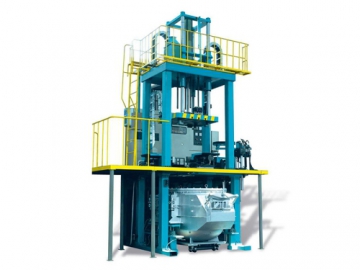

Low Pressure Die Casting Machine

Request a Quote

View All: http://jdx-filtration.com/3-1-low-pressure-die-casting-machine.html

Low pressure die casting machine allows for producing castings with advanced technology of simplified casting process, eliminating unnecessary operation procedures. The low pressure die casting process is more prevalent process used in foundries to meet the demands on today’s industry.

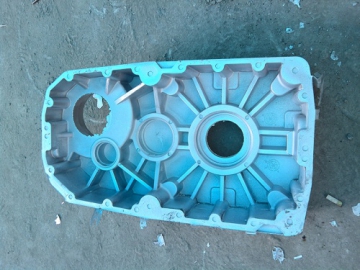

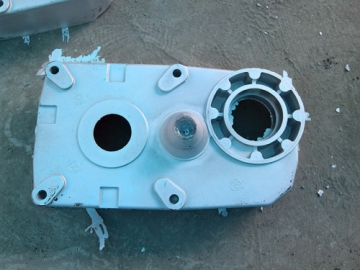

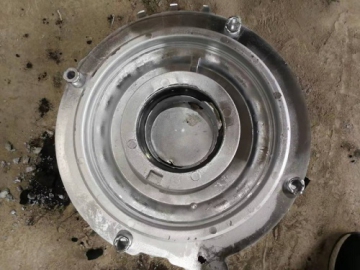

Examples

Specifications

Model: FTR458A

Holding capacity kg: 800
Die plate size mm: 2500/2100
Die stroke mm: 1500
Distance between tie-bars mm: 2100/1700
Core pulling stroke mm: 400
Ejector stroke mm: 600
Servo motor power kw: 16
Holding furnace power kw: 60
Machine weight t: ≤40

Model: FTR456A

Holding capacity kg: 600
Die plate size mm: 2200/1600
Die stroke mm: 1300
Distance between tie-bars mm: 1700/1300
Core pulling stroke mm: 400
Ejector stroke mm: 500
Servo motor power kw: 14
Holding furnace power kw: 30
Machine weight t: ≤28

Model: FTR455A

Holding capacity kg: 500
Die plate size mm: 2100/1600
Die stroke mm: 1300
Distance between tie-bars mm: 1700/1300
Core pulling stroke mm: 300
Ejector stroke mm: 500
Servo motor power kw: 14
Holding furnace power kw: 30
Machine weight t: ≤25

Model: FTR454A

Holding capacity kg: 400
Die plate size mm: 2000/1400
Die stroke mm: 1200
Distance between tie-bars mm: 1600/1100
Core pulling stroke mm: 300
Ejector stroke mm: 500
Servo motor power kw: 12
Holding furnace power kw: 30
Machine weight t: ≤15

Model: FTR453A

Holding capacity kg: 300
Die plate size mm: 1800/1300
Die stroke mm: 1200
Distance between tie-bars mm: 1400/1000
Core pulling stroke mm: 300
Ejector stroke mm: 500
Servo motor power kw: 12
Holding furnace power kw: 30
Machine weight t: ≤15

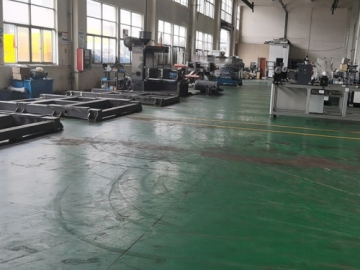

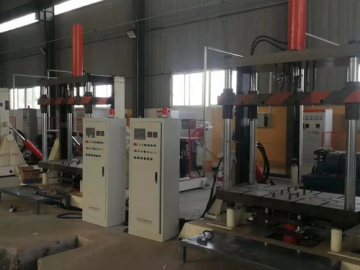

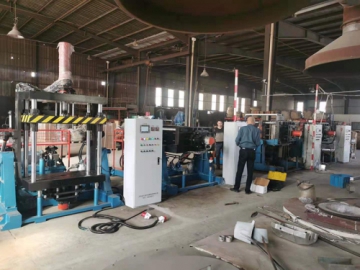

Die Casting Machine Production Workshop
