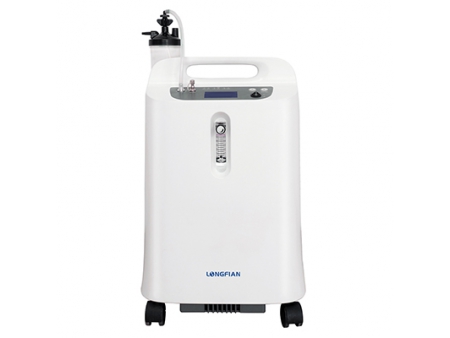

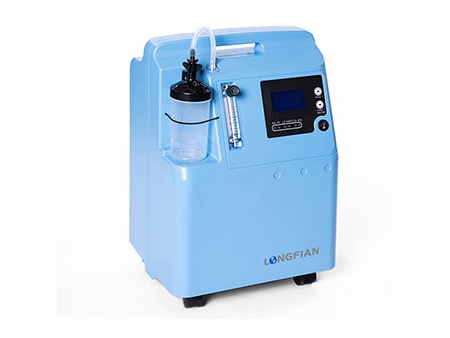

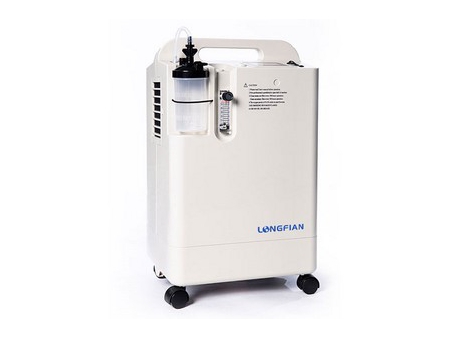

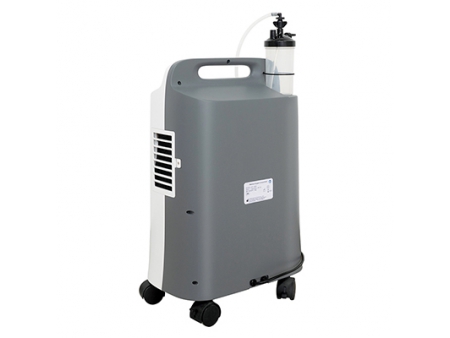

Stationary Oxygen Concentrator

Stationary Oxygen Concentrator
Stationary Oxygen Concentrator
Stationary Oxygen Concentrator
Request a Quote

JAY-3AW

Technical Parameters
Model JAY-3AW
Flow Rate 0.5-3L/min
Oxygen Purity 93% (±3%)
Outlet Pressure 6-10 PSI (0.04-0.07 Mpa)
Net Weight 15kg
Input Frequency 50Hz ; 60Hz
Put Voltage AC230V ± 10%; AC110V ±10%
Alarm 1. Power failure alarm;
2. High and low pressure alarm;
3. Low oxygen concentration alarm: When oxygen purity is > 82%, blue light illuminates; When oxygen purity is < 82%, red light illuminates for indicating low purity;

JAY-3BW

Technical Parameters
Model JAY-3BW
Flow Rate 0.5-3L/min
Oxygen Purity 93% (±3%)
Outlet Pressure 6-10 PSI (0.04-0.07 Mpa)
Net Weight 16kg
Sound Level ≤43dB
Power Consumption ≤300W
Input Frequency 50Hz; 60Hz
Put Voltage AC230V ± 10%; AC110V ±10%
Alarm 1. Power failure alarm;
2. High and low pressure alarm;
3. Low oxygen concentration alarm: When oxygen purity is > 82%, blue light illuminates; When oxygen purity is < 82%, red light illuminates for indicating low purity;

JAY-5DW

Technical Parameters
Model JAY-5DW
Flow Rate 0.5-5L
Outlet Pressure 6-10PSI(0.04-0.07Mpa)
Oxygen Concentration 93% (±3%)
Sound Level ≤40dB
Power Consumption ≤280W
Alarm Power failure alarm,
High/low pressure alarm,
Low oxygen concentration alarm
Dimension 355*245*595mm

JAY-5AW

Technical Parameters
Model JAY-5AW
Flow Rate 0.5-5L/min
Oxygen Purity 93% (±3%)
Outlet Pressure 6-10 PSI (0.04-0.07 Mpa)
Power Consumption ≤350W
Input Frequency 50Hz; 60Hz
Put Voltage AC230V ± 10%; AC110V ±10%
Alarm 1. Power failure alarm
2. High & low pressure alarm
3. Low oxygen concentration alarm
Certificate CE, FDA

JAY-5BW

Technical Parameters
Model JAY-5BW
Flow Rate 0.5-5L/min
Oxygen Purity 93% (±3%)
Outlet Pressure 6-10 PSI (0.04-0.07 Mpa)
Power Consumption ≤300W
Input Frequency 50Hz; 60Hz
Put Voltage AC230V ± 10%; AC110V ±10%
Alarm 1. Power failure alarm
2. High & low pressure alarm
3. Low oxygen concentration alarm

JAY-5HW

Technical Parameters
Model JAY-5HW
Flow Rate 0.5-5L/min
Oxygen Purity 93%(±3%)
Outlet Pressure 6-10PSI (0.04-0.07Mpa)
Sound Level ≤38dB
Power Consumption ≤350W
Dimension 380*285*590mm
Input Frequency 50Hz; 60Hz
Put Voltage AC230V±10%; AC110V±10%
Alarm Configuration A: Oxygen concentration on-site display, low flow visual and audible alarm
Configuration B: Configuration A remote control, showing humidity/temperature/altitude, with visual & audible alarm for high/low pressure, low voltage, power failure alarm
Configuration C: Configuration A remote control, showing humidity/temperature/altitude, with visual & audible alarm for high/low pressure, low voltage and warmup failure, extra voice broadcast

JAY-10

Technical Parameters
Model JAY-10
Flow Rate 0.5-10L/min
Oxygen Purity 93% (±3%)
Outlet Pressure 6-10PSI(0.04-0.07Mpa) /20PSI(0.14Mpa)
Sound Level ≤ 50dB
Power Consumption ≤ 880W
Input Frequency 50Hz ; 60 Hz
Input Voltage AC 230V ± 10%;AC 110V ±10%
Optional Dual flow
Alarm 1. Power failure alarm
2. High & low pressure alarm
3. Low oxygen concentration alarm

JAY-10FW

Technical Parameters
Model JAY-10FW
Flow Rate 0.5-10L
Outlet Pressure 6-10PSI/20PSI
Oxygen Concentration 93%(±3%)
Sound Level ≤46dB
Power Consumption ≤710W
Alarm Power failure alarm,
High/low pressure alarm,
Low oxygen concentration alarm
Dimension 385*350*600mm

Model 2lpm (designed for infants)
Flow Rate 0.125-2L
Oxygen Concentration 93% ( -3%)
Outlet Pressure 6-10Psi
Net Weight 10kg
Dimension 215*335*450mm
Features
  • Innovative cooling technology to ensure 24/7/365 operation.

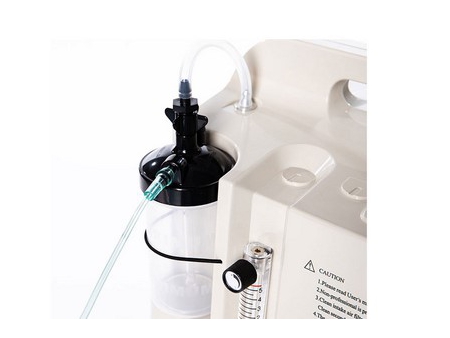

  • Humidifier bottle with a pressure relief valve of 6Psi, safer and more comfortable.
  • Simple operation functions and easy-to read 7.8"LCD display.
  • Low power consumption, energy and electricity saving.
  • JAY-5HW oxygen concentrator can provide medical grade oxygen and automatically adapt to different altitude level.
Application
  • Oxygen therapy according to the doctor's prescription.
  • Oxygen inhalation is suitable for patients with breathing-related disorders like pulmonary disease, ARDS, pneumonia, lung injuries, bronchitis, asthma, etc.
  • The stationary oxygen concentrator can be used in conjunction with HFNC, HBOC, or BIPAP
    -Connecting with HFNC (high flow nasal cannula) machine, it provides oxygen with a stable, high concentration, making it more comfortable.
    -Connecting with HBOC (hemoglobin-based oxygen carrier), it rapidly and effectively increases the patient's SPO2.

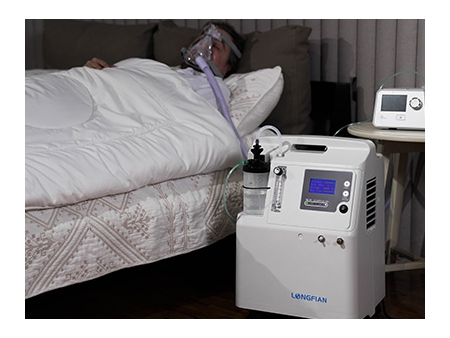

    -When working with a BIPAP machine, this makes it convenient for COPD patients to have oxygen therapy at home.
