Chain Transfer Unit
Request a Quote
Pallet handling conveyor for pallet transferring at a 90° angle

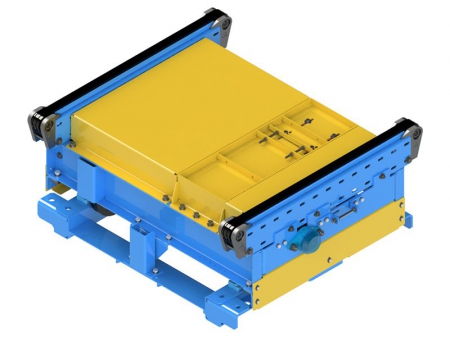

Chain transfer unit is a lifting and transfer device that provides a perpendicular transition between chain conveyors, composed of a chain conveyor for unit load items and a lifting device driven by a motor. This equipment is located beneath the chain conveyor, occupying minimal floor space, making it convenient for transferring unit loads at a 90° angle or switching production lines, facilitating multidirectional pallet transportation.
Transportable Materials
Chain transfer unit is suitable for handling various materials carried on pallets.
Applicable Industries
EV battery, automated warehouse logistics, tobacco and alcohol industry, e-commerce retail, pharmaceuticals and food, automotive and construction materials, etc.
Features
- The frame is made of painted steel, balancing strength and aesthetics.
- Aluminum alloy head and tail multidirectional wheels ensures easy mobility.
- Modular design allows for easy maintenance and repair.
Technical Data
Parameter | |
Length L mm | 940≤L≤1330 (Adjustable in increments of 65mm) |
Width W mm | B 80 |
Effective width B mm | 750≤B≤1550 |
Height H mm | 550/610 (Low/High) |
Motor Brand | SEW, NORD, CPG |
Chain Brand | ZIQIANG CHAIN, CHOHO |
Bearing/Bearing Seat Brand | HRB/FSB, NSK/FSB, SKF/FSB, NSK/NSK |
Color | Powder coating with all RAL colors available. |
Nonstandard models can be customized. |
Product Information | ||
Basic Information | Load Capacity | ≤1500kg |
Speed | 12, 16, 18m/min | |
Lifting time | 2.5s (single travel) | |
Temperature | 5℃ to 45℃ | |
Relative Humidity | ≤90% (No condensing) | |
Chain | Model | C10B-2 |
Material | 40CR, 304 | |
Number Of Chains | 2 or 3 strand | |
Drive Mode (Conveying Unit) | Drive Motor | Gear motor |
Motor Power | 0.37, 0.55, 0.75, 1.1kW (braked motor is available) | |
Motor Voltage | 380V | |
Brake Voltage | 220V | |
Drive Method | Chain | |
Installation | Ground Installation | Expansion bolts |
Ground Flatness | Level ground, error ≤5° | |
Height Adjustment | ±30mm |
