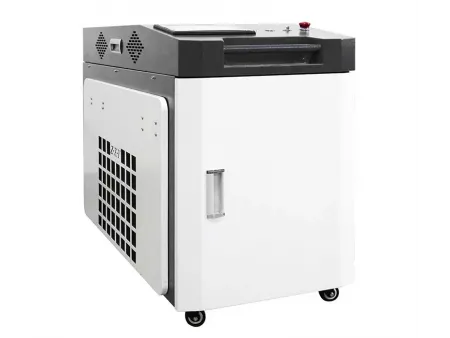

CW Laser Cleaning Machine
- Laser wavelength 1080nm
- Cooling method water cooling
- Scanning width 10-100mm
- Machine weight 110kg
- Non-contact, zero-consumable cleaning: Cleans rust, paint, and grease without chemicals or abrasives. Zero secondary pollution and no damage to the base material.
- Ergonomic handheld gun: Weighing only 600g, the laser head features a lightweight, ergonomic design for one-handed operation—perfect for deep grooves and hard-to-reach areas.
- Industry-leading speed: Removes rust from 5m² in just one hour—10 times faster than manual grinding. Daily cleaning capacity exceeds 500m², reducing labor costs by 60%.
- Metals: Stainless steel, carbon steel, aluminum alloys, titanium alloys (for rust removal, paint stripping, oxide layer removal).
- Industrial components: Molds (tire/food molds), engine parts, welds on nuclear equipment.
- Special applications: Ship rust removal, aerospace coatings, cultural heritage surface restoration (bronze ware, stone carvings).
- Composite materials: Metal-rubber joint surfaces, coated steel plates (without damaging the underlying material).
- Laser cleaning for paint removal

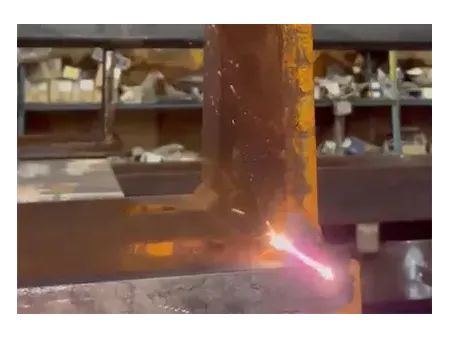

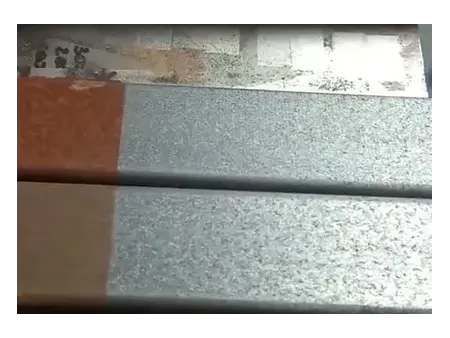

- Laser cleaning for rust removal
- Metal part laser cleaning
- Technical Data
- Configuration
- FAQ
- Why Us
- Laser type fiber laser
- Laser wavelength 1080nm
- Laser power 1500W, 2000W, 3000W, 6000W
- Power adjustment range 10%-100%
- Cleaning efficiency 5m²/hour (depending on material and contamination)
- Cooling method water cooling
- Fiber length 10m
- Scanning width 10-100mm
- Power supply 220V/50Hz ±10%, total power ≤3kW
- Operating conditions Flat, vibration-free, interference-free
- Operating temperature 0~40℃
- Machine dimensions 450×950×800mm
- Package size 1070×610×850mm
- Machine weight 110kg
- Package weight 130kg
- 1500W laser powerCleaning thickness ≤1mm (depends on material)
- 2000W laser powerCleaning thickness 1-2mm (depends on material)
- 3000W laser powerCleaning thickness 2-3mm (depends on material)
- 6000W laser powerCleaning thickness ≥3mm (depends on material)
Laser source
Adopts industry-leading renowned brands such as Raycus, JPT, MAX, RECI, and IPG laser sources, featuring high pump conversion efficiency, low power consumption, and excellent beam quality, ensuring stable performance and a lifespan of up to 100,000 hours.

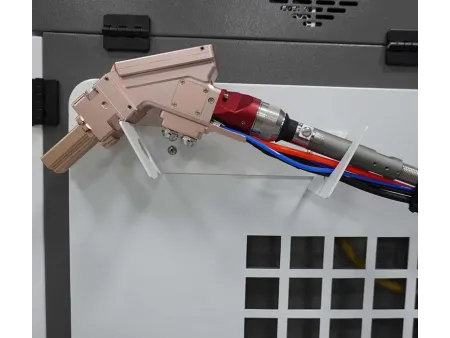

Handheld cleaning head
With a QBH interface paired with a continuous fiber laser, it provides high-power density output for rust removal in seconds. Its lightweight, ergonomically designed grip supports 360° multi-angle operation, easily tackling complex structures like gear walls and weld blind spots. Built-in preset programs allow for one-key parameter switching, boosting cleaning efficiency by over 5 times compared to traditional sandblasting.
Touch screen
Provides a high-resolution display interface, supporting real-time parameter monitoring and operational feedback to ensure precise control over key parameters such as laser power, frequency, and energy. It features built-in multi-language options (e.g., Chinese, English) to meet global user demands and lower the operational threshold.

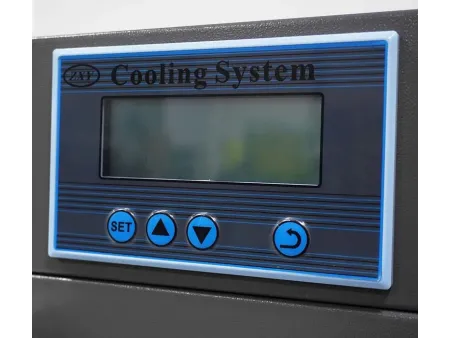

Water cooling circulation system
Features a dual-channel water cooling design with a high-flow centrifugal pump (≥60L/min), capable of reducing the temperature of core components from 80℃ to 25℃ within 30 seconds. It supports continuous 8-hour full-load operation of the laser without power attenuation. Real-time monitoring of water temperature, flow, and pressure triggers automatic alarms and shutdown protection in abnormal conditions.
Safety goggles
Specifically designed for fiber laser wavelengths (e.g., 1064nm, 1070-1100nm), with an Optical Density (OD) reaching OD4 to OD7 , effectively attenuating laser energy to below safe thresholds. They balance clear vision with safety protection and reduce operational fatigue.
Tool box
A tool set is provided free with the equipment, with hex key tools, copper nozzles, protective lenses, etc., separately packaged to prevent transport wear and tear, and for clear visibility and improved operational efficiency.
Protective lenses
Made from JGS1 quartz or ZnSe zinc selenide, with light transmittance ≥99.8% and laser damage threshold >15J/cm². They are suitable for high-power equipment above 2000W, reducing energy loss. Double-sided anti-reflective coating reduces reflectivity to below 0.2%, preventing secondary light pollution.
- Protective lenses
- Focusing lenses
